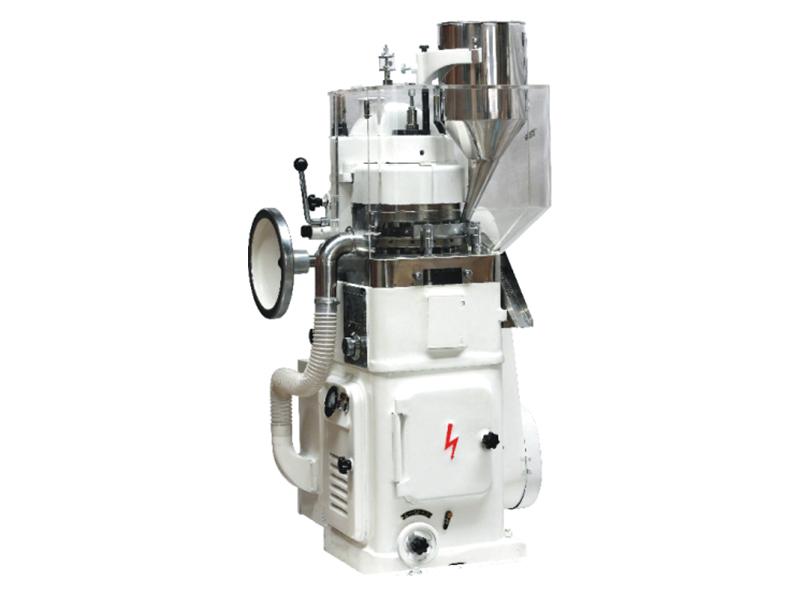

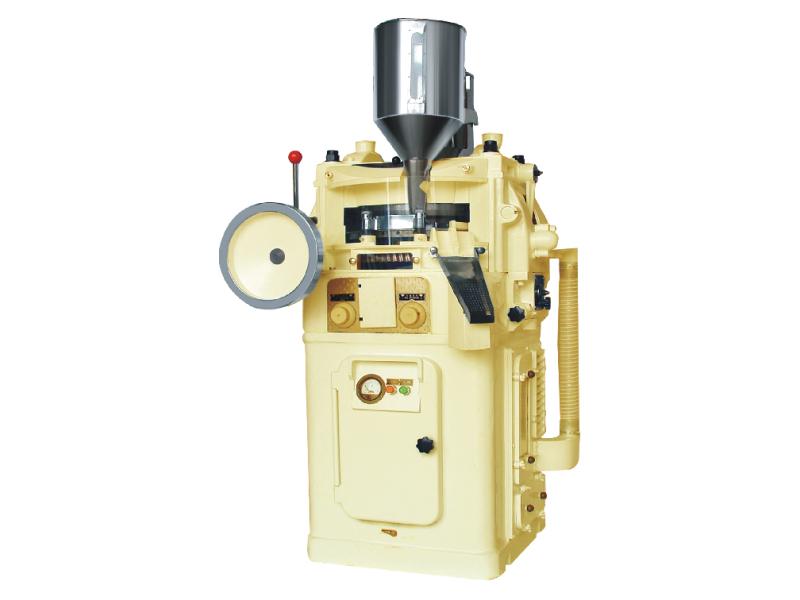

This rotary tablet press machine is designed for pressing tablets made from various kinds of materials. In addition to round tablets, it is also suitable for producing tablets of different geometrical shapes or tablets with impressed letters on both sides.

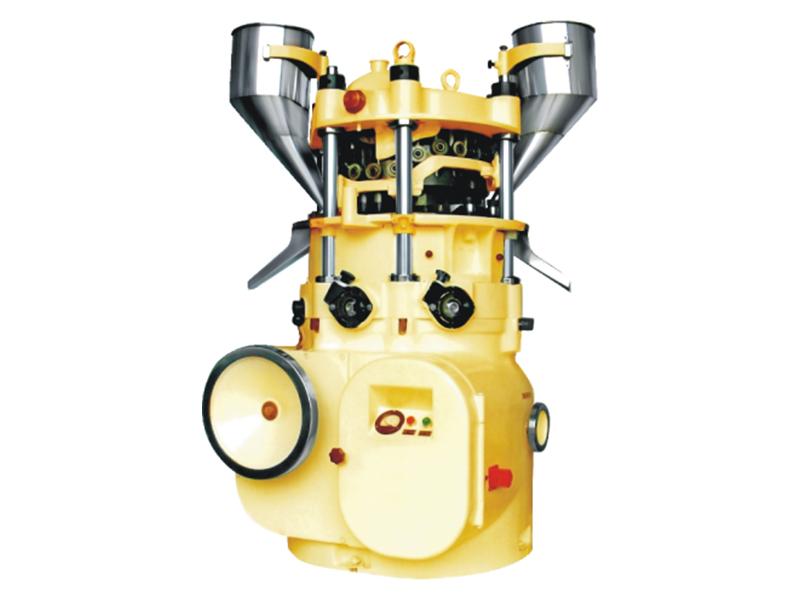

This rotary tablet press machine is a double-press type, including two sets of feeding structures and a press-roller unit. With 25 sets of movable punches and dies, this rotary tablet press machine produces 50 tablets with each revolution of the turret. It is suitable for mass tablet production.
Model | ZP17 | ZP19 | ZP25 | ZP33 |
Number of Stations | 17 | 19 | 25 | 33 |
Main Compression Force (kN) | 50 | 40 | 60 | 40 |
Maximum Tablet Diameter (mm) | 20 | 13 | 20 | 13 |
Depth of Fill (mm) | 15 | 15 | 15 | 15 |
Maximum Tablet Thickness (mm) | 6 | 6 | 6 | 6 |
Max. Turret RPM (r/min) | 40 | 40 | 10 | 28 |
Max. Output (pcs/h) | 40800 | 45600 | 30000 | 110000 |
Motor Power (kW) | 2.2 | 2.2 | 3 | 2.2 |
Overall Size (mm) | 880x750x1600 | 880x750x1600 | 1100x1100x1700 | 930x900x1600 |
Approx. Net Weight (Kg) | 500 | 500 | 1800 | 850 |
