Core Tableting Press ZPW26

Core-covered Tablet Press
Core-covered Tablet Press Core-covered Tablet Press

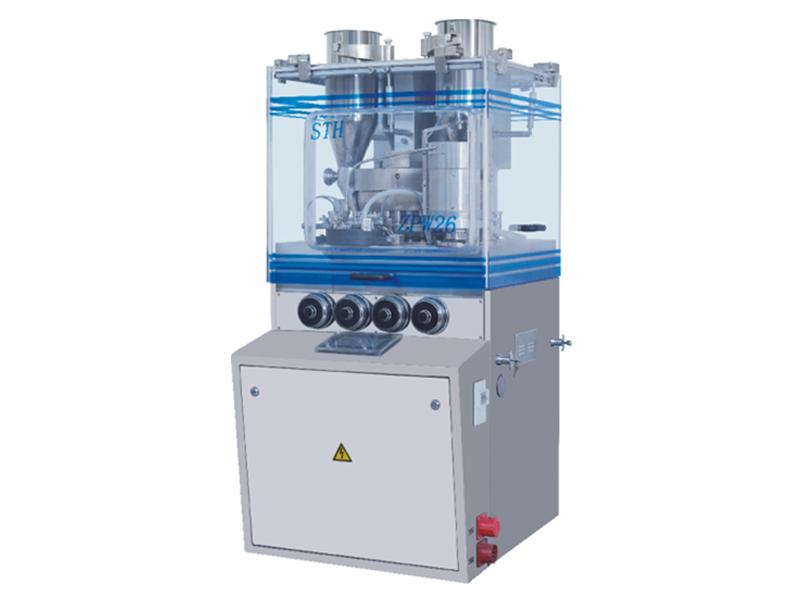

The ZPW26 high speed rotary tablet press machine is a high efficiency tablet press mainly used to press core tablets. The equipment is widely applied in pharmaceutical, chemical, food, electronics, and other industrial applications. It is characterized by its fully enclosed structure, chrome-plated turret, frequency inversion speed regulation, automatic lubricating system, and overload protection. This high speed rotary tablet press machine has different impellers to meet the feeding requirements of different raw materials.

Specification:
Model ZPW26
Number of Stations 26
Main Compression Force (kN) 80
Maximum Core Tablet Diameter (mm) 12
Depth of Fill (mm) 18
Maximum Core Tablet Thickness (mm) 5
Max. Turret RPM (r/min) 14
Max. Output (pcs/h) 21840
Motor Power (kW) 4
Overall Size (mm) 920x970x1900
Approx. Net Weight (Kg) 1600
