High Speed Rotary Tablet Press GZP(K)730

GZP(K)730 Series High Speed Rotary Tablet Press
GZP(K)730 Series High Speed Rotary Tablet Press GZP(K)730 Series High Speed Rotary Tablet Press

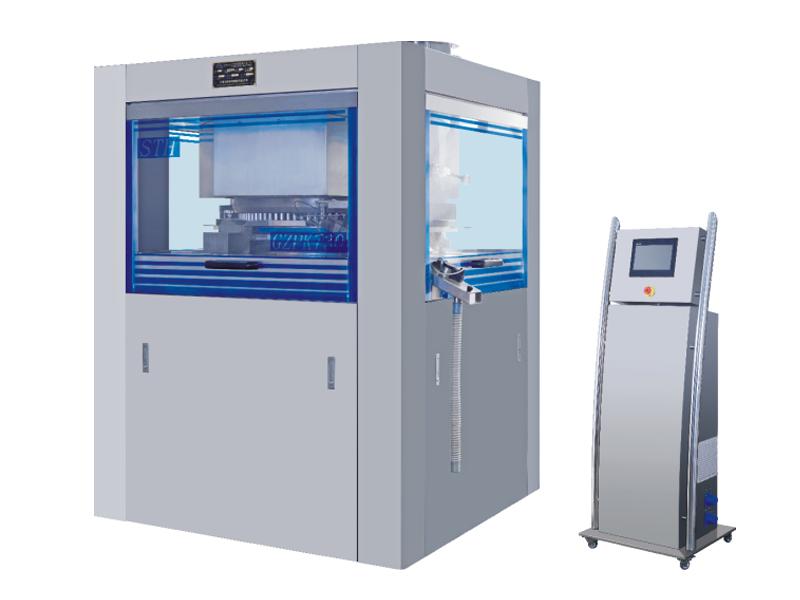

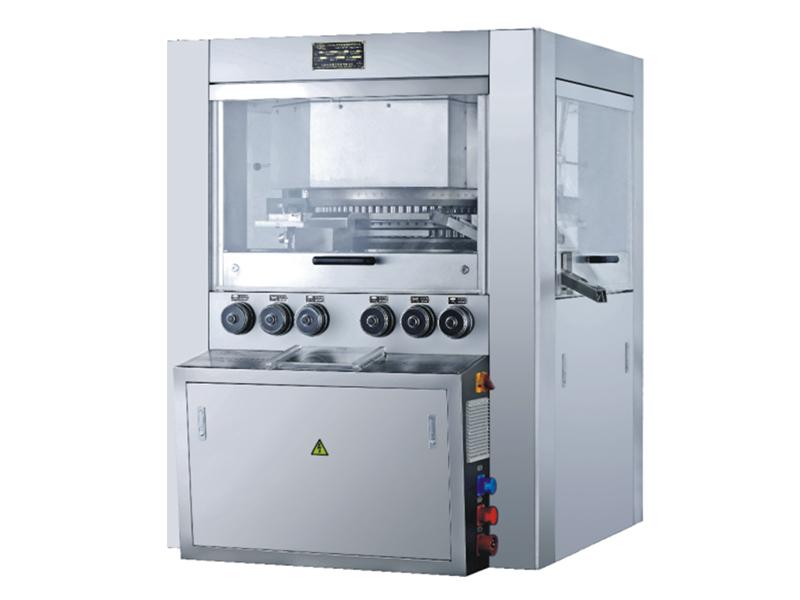

This high-speed rotary tableting press is designed for flexible production as it can press two-layer tablets, annular tablets, round tablets, engraved tablets and irregular tablets in different colors. It comes with a separate control cabinet to control the high-speed rotary tableting press and separated production area. Within the machine, tablets are formed twice by the main press tool and the pre-press. This high-speed rotary tableting press is suitable for applications in pharmaceutical, food, and chemical industries.

Specification:
Model GZP(K)-51 GZP(K)-63 GZP(K)-75 GZP(K)-81
Number of Stations 51 63 75 81
Tooling Type D B BB BBS
Main Compression Force (kN) 100 100 100 100
Pre Compression Force (kN) 100 100 100 100
Maximum Tablet Diameter (mm) 25 18 13 11
Depth of Fill (mm) 20 18 15 15
Maximum Tablet Thickness (mm) 8 7 6 6
Max. Turret RPM (r/min) 70 70 70 70
Max. Output (pcs/h) 428400 529200 630000 680400
Motor Power (kW) 15 15 15 15
Overall Size (mm) 1780x1660x1920 1780x1660x1920 1780x1660x1920 1780x1660x1920
Approx. Net Weight (Kg) 4800 4800 4800 4800
