Rotary Tableting Press ZP11B/ZP18B

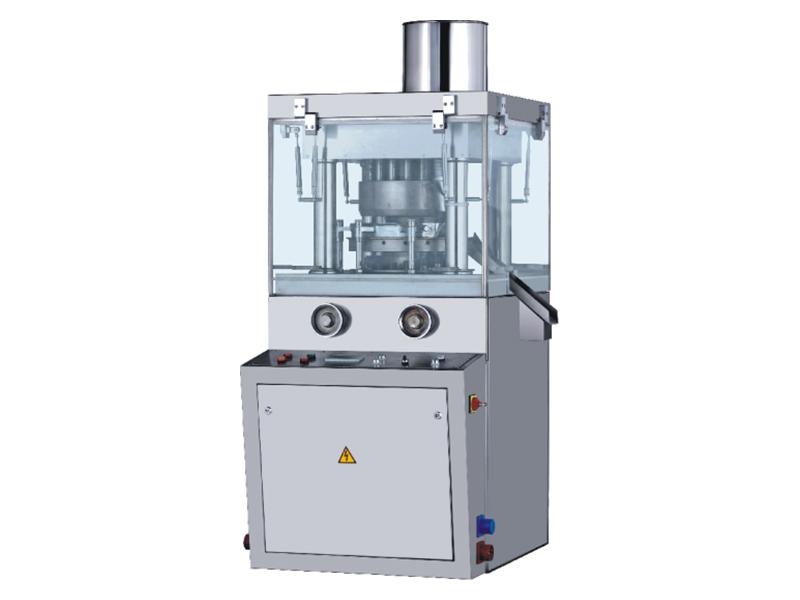

ZP11(B)/ZP18(B) Series Rotary Tablet Press
ZP11(B)/ZP18(B) Series Rotary Tablet Press ZP11(B)/ZP18(B) Series Rotary Tablet Press
Applications

The ZP11 rotary tableting press is used for pressing various granular materials into special-shaped tablets like electronic elements, camphor balls, catalysts, and powder metallurgy products. It is versatile enough for applications in electronics, food, chemical, and other industrial applications.

Specification:
Model ZP11B ZP18B
Number of Stations 11 18
Main Compression Force (kN) 100 100

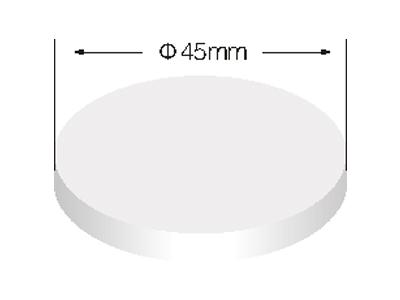

Maximum Tablet Diameter (mm) 45 30
Depth of Fill (mm) 45 30
Maximum Tablet Thickness (mm) 20 12
Max. Turret RPM (r/min) 12 20
Max. Output (pcs/h) 7920 21600
Motor Power (kW) 5.5 5.5
Overall Size (mm) 1100x1000x1900 1100x1000x1900
Approx. Net Weight (Kg) 2000 2000
