Rotary Tableting Press GZP(K)620

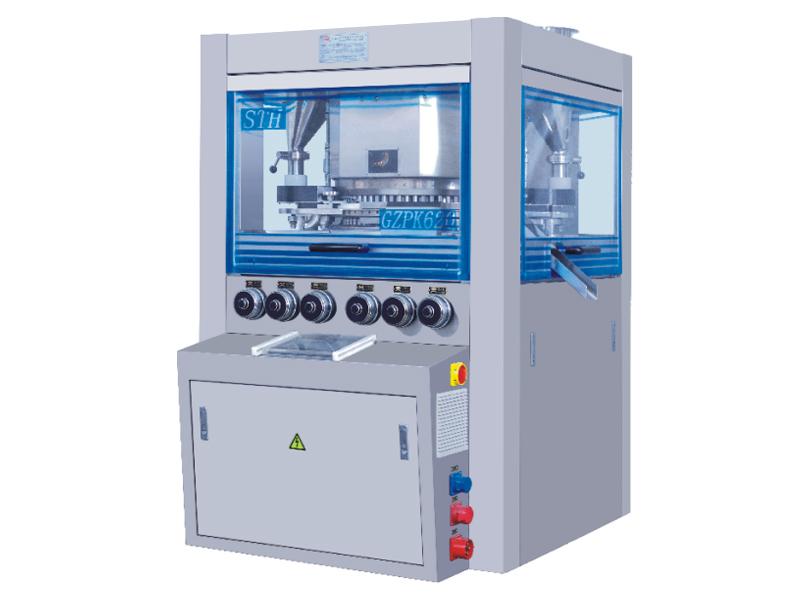

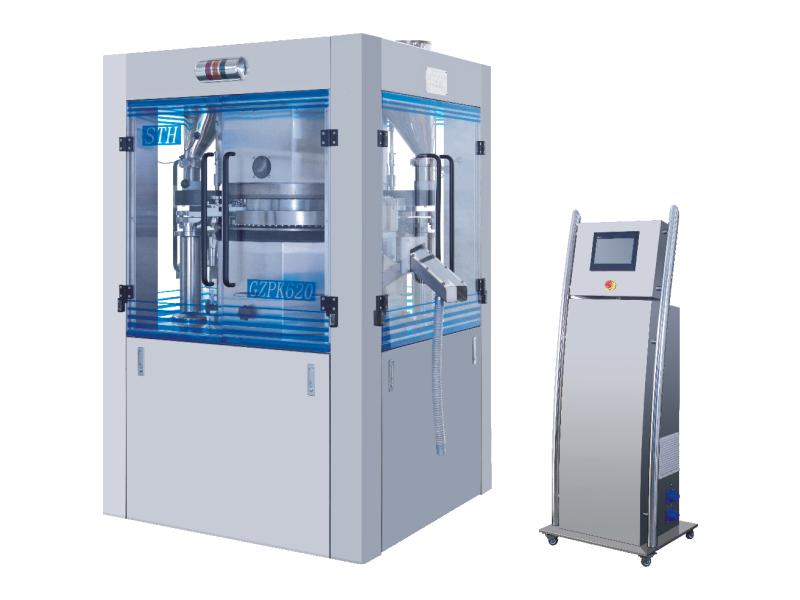

GZP(K)620 Series High Speed Rotary Tablet Press
GZP(K)620 Series High Speed Rotary Tablet Press GZP(K)620 Series High Speed Rotary Tablet Press

This rotary tableting press is primarily applied in pharmaceutical, chemical, food, and electronic industries for pressing various granular materials into firm tablets. The tablet equipment features a well-sealed structure and conforms with GMP standards. With an overload protection system, this rotary tableting press stops automatically in case of overload.

Specification:
Model GZP(K)-45 GZP(K)-55 GZP(K)-65 GZP(K)-71
Number of Stations 45 55 65 71
Tooling Type D B BB BBS
Main Compression Force (kN) 100 100 100 100
Pre Compression Force (kN) 20 20 20 20
Maximum Tablet Diameter (mm) 25 18 13 11
Depth of Fill (mm) 20 18 15 15
Maximum Tablet Thickness (mm) 8 7 6 6
Max. Turret RPM (r/min) 70 70 70 70
Max. Output (pcs/h) 378000 462000 546000 596400
Motor Power (kW) 11 11 11 11
Overall Size (mm) 1530x1250x1900 1530x1250x1900 1530x1250x1900 1530x1250x1900
Approx. Net Weight (Kg) 4300 4300 4300 4300
