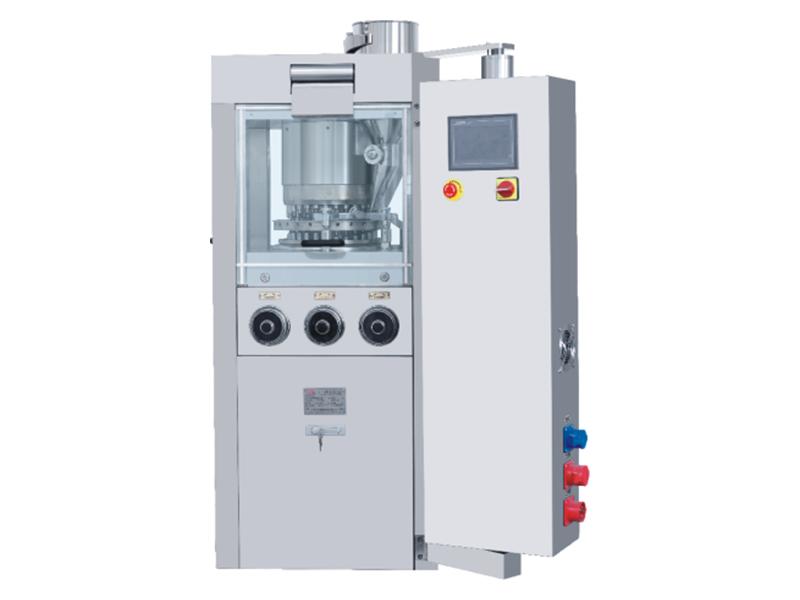

Lab Tablet Press Machine ZP265
The ZP265 tablet press is a compact tablet press machine suitable for use in laboratories and university research centers.
Specification:
| Model | ZP18 | ZP23 | ZP25 | ZP27 | ZP30 |
| Number of Stations | 18 | 23 | 25 | 27 | 30 |
| Tooling Type | D | D | ZP | BB | BBS |
| Main Compression Force (kN) | 80 | 80 | 80 | 80 | 80 |
| Pre Compression Force (kN) | 10 | 10 | 10 | 10 | 10 |
| Maximum Tablet Diameter (mm) | 25 | 18 | 13 | 13 | 11 |
| Depth of Fill (mm) | 18 | 18 | 16 | 16 | 16 |
| 6Maximum Tablet Thickness (mm) | 7 | 7 | 6 | 7 | 7 |
| Max. Turret RPM (r/min) | 36 | 36 | 36 | 36 | 36 |
| Max. Output (pcs/h) | 38880 | 49680 | 54000 | 58320 | 64800 |
| Motor Power (kW) | 3 | 3 | 3 | 3 | 3 |
| Overall Size (mm) | 850x800x1560 | 850x800x1560 | 850x800x1560 | 850x800x1560 | 850x800x1560 |
| Approx. Net Weight (Kg) | 800 | 800 | 800 | 800 | 800 |
