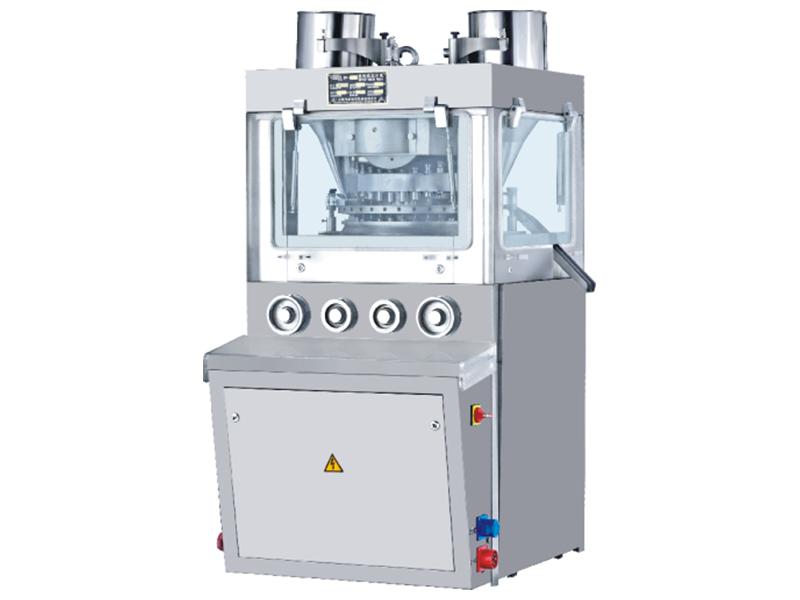

Rotary Tableting Press ZP31/ZP29/ZP27
Applications
The ZP31/ZP29/ZP27 rotary tableting press is used for pressing various granular materials into special-shaped tablets like electronic elements, camphor balls, catalysts, and powder metallurgy products. It is versatile enough for applications in the electronics industry, food industry, chemical industry, and other industries.
Specification:
| Model | ZP31 | ZP29 | ZP27 | |||
| Number of Stations | 31 | 29 | 27 | |||
| Tooling Type | ZP | B | ZP | D | ZP | For effervescent tablet |
| Main Compression Force (kN) | 100 | 100 | 100 | 100 | 100 | 100 |
| Pre Compression Force (kN) | 10 | | 10 | | 10 | |

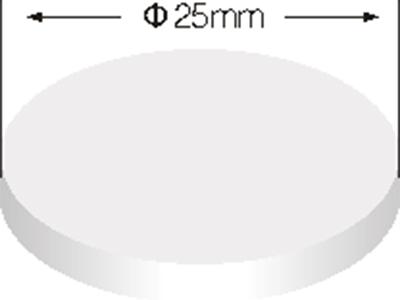

| Maximum Tablet Diameter (mm) | 25 | 18 | 25 | 25 | 25 | 25 |
| Depth of Fill (mm) | 15 | 18 | 15 | 20 | 15 | 20 |
| Maximum Tablet Thickness (mm) | 6 | 7 | 6 | 8 | 6 | 8 |
| Max. Turret RPM (r/min) | 30 | 30 | 30 | 30 | 30 | 30 |
| Max. Output (pcs/h) | 111600 | 111600 | 104400 | 104400 | 97200 | 64800 |
| Motor Power (kW) | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Overall Size (mm) | 1140x1000x1650 | 1140x1000x1650 | 1140x1000x1650 | 1140x1000x1650 | 1140x1000x1650 | 1140x1000x1650 |
| Approx. Net Weight (Kg) | 1850 | 1850 | 1850 | 1850 | 1850 | 1850 |
