Multiple Station Tablet Rotary Press ZPW23

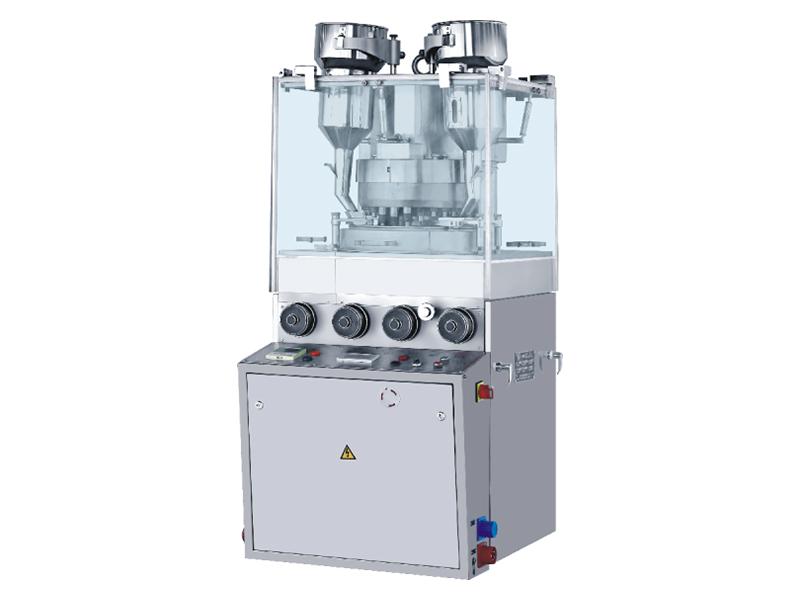

ZPW23 Series Multi-functional Rotary Tablet Press
ZPW23 Series Multi-functional Rotary Tablet Press ZPW23 Series Multi-functional Rotary Tablet Press

This rotary tableting press is a continuous automatic tablet press for pressing granular raw materials into firm tablets. The equipment is a double-press type designed for industrial applications for large batch orders. Features of this rotary tableting press include stainless steel structure, transparent window, frequency conversion speed regulation, overload protection, safety protection device, etc.

Specification:
Model ZPW23
Number of Stations 23
Main Compression Force (kN) 80
Maximum Tablet Diameter (mm) 20
Depth of Fill (mm) 22
Maximum Tablet Thickness (mm) 10
Max. Turret RPM (r/min) 40
Max. Output (pcs/h) 55000
Motor Power (kW) 4
Overall Size (mm) 950x930x1850
Approx. Net Weight (Kg) 1500
Inquiry
Tags
Tablet Press Pharmaceutical Tablet Press Machine
Related Product
    1. ZPW125 Series Multi-functional Rotary Tablet Press
    2. ZPW125 Series Multi-functional Rotary Tablet Press
    1. Core-covered Tablet Press
    2. Core-covered Tablet Press
    1. ZPW500 Series Multi-functional Rotary Tablet Press
    2. ZPW500 Series Multi-functional Rotary Tablet Press

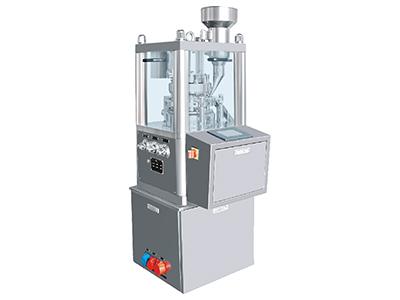

    1. ZP198 Series Rotary Tablet Press
