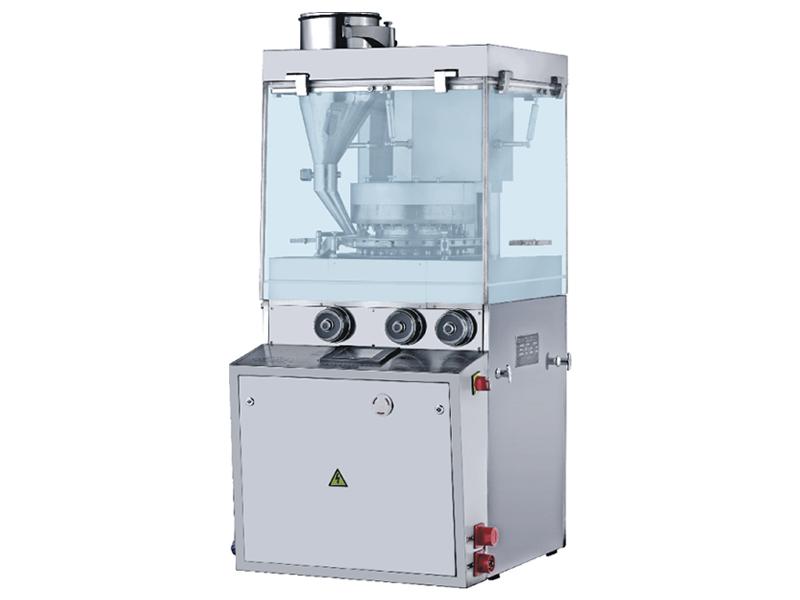

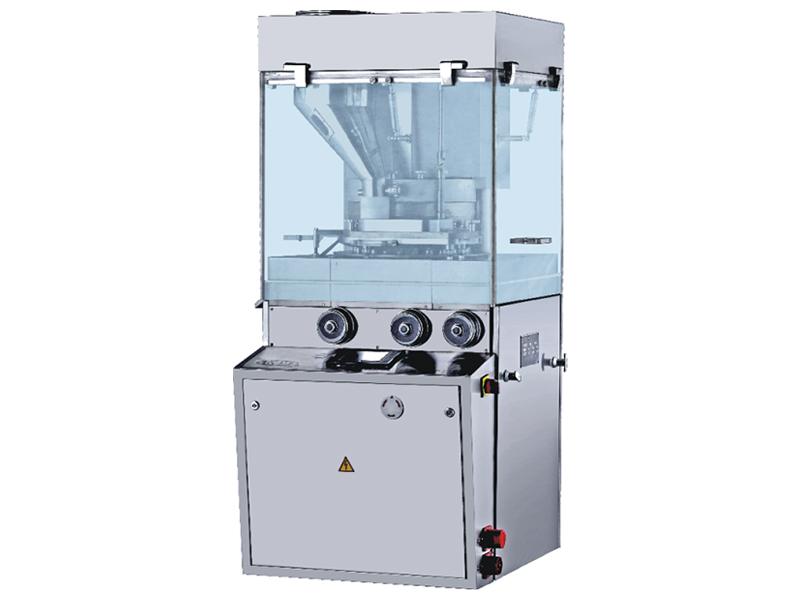

Rotary Tablet Press ZP1100
Applications of Rotary Tableting Press ZP1100
Our rotary tableting press ZP1100 is suitable for the pressing of granular materials containing less than 10% powder. It can press 4-22 mm round, letter-engraved, or specially shaped tablets. It is not applicable for semi-solid, damp, moisture-absorptive, and non-granular materials with a low melting point. As a compact automatic continuous rotary tableting press, it is primarily applied for tablet production in research and development centers.
Specification:
| Model | ZP1124(A) | ZP1129(A) | ZP1134(A) | ZP1136(A) | ZP1139(A) | ZP1150(A) |
| Number of Stations | 24 | 29 | 34 | 36 | 39 | 50 |
| Tooling Type | D | B | ZP | BB | BBS | TS14 |
| Main Compression Force (kN) | 80 | 80 | 80 | 80 | 80 | 80 |
| Pre Compression Force (kN) | 20 | 20 | 20 | 20 | 20 | 20 |
| Maximum Tablet Diameter (mm) | 25 | 18 | 13 | 13 | 11 | 8 |
| Depth of Fill (mm) | 18 | 18 | 18 | 18 | 18 | 18 |
| Maximum Tablet Thickness (mm) | 7 | 7 | 7 | 7 | 7 | 7 |
| Max. Output (pcs/h) | 93600 | 113100 | 132600 | 140400 | 152100 | 195000 |
| Motor Power (kW) | 4 | 4 | 4 | 4 | 4 | 4 |
| Overall Size (mm) | 960x910 x1750 | 960x910 x1750 | 960x910 x1750 | 960x910 x1750 | 960x910 x1750 | 960x910 x1750 |
| Approx. Net Weight (Kg) | 1650 | 1650 | 1650 | 1650 | 1650 | 1650 |
