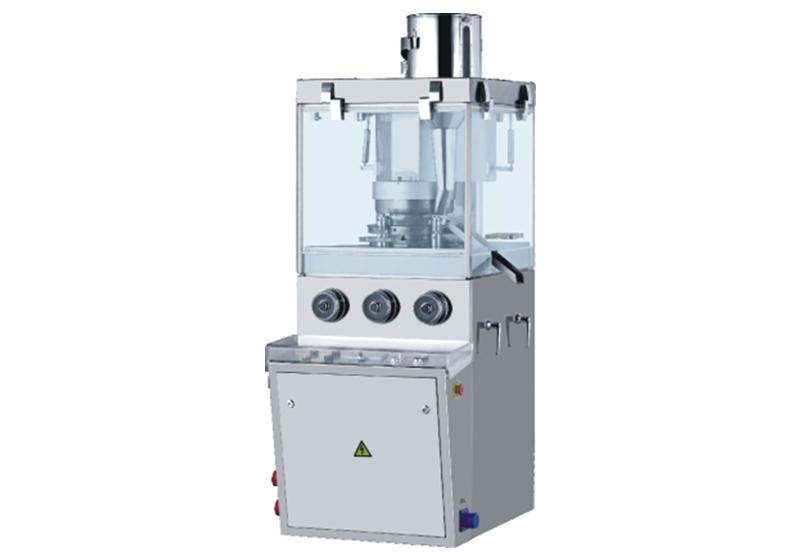

Rotary Tablet Press Machine ZP17E/ZP19E

ZP17E/ZP19E Series Rotary Tablet Press

This rotary tablet press machine is particularly suitable for small-scale batch production of round and other shaped tablets from various kinds of granular materials. With 17 or 19 sets of punches and dies, this rotary tablet press machine produces 17 or 19 tablets with each revolution of the turret.

Specification:
Model ZP17E ZP19E
Number of Stations 17 19
Main Compression Force (kN) 50 50
Pre Compression Force (kN) 10 10
Maximum Tablet Diameter (mm) 20 13
Depth of Fill (mm) 15 15
6Maximum Tablet Thickness (mm) 6 6
Max. Turret RPM (r/min) 40 40
Max. Output (pcs/h) 40800 45600
Motor Power (kW) 2.2 2.2
Overall Size (mm) 950x770x1740 950x770x1740
Approx. Net Weight (Kg) 900 900
