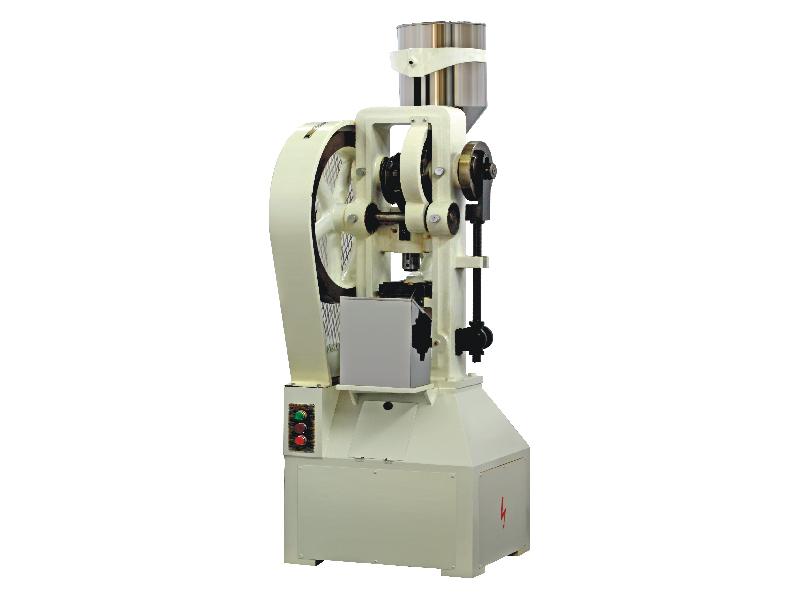

Flower Basket Tablet Press Machine THP-4

THP-4/THP-10 Series Benchtop Model Single-Punch Tablet Press

The flower basket tablet press machine THP is a medium continuous automatic table press used to press medical tablets, coffee pills, powder metallurgical parts, electronic components, various tablets of pesticide and fertilizers in laboratory and hospital settings. It is suitable for small-scale batch production.

Specification:
Model THP-4 THP-10
Main Compression Force (kN) 40 100
Maximum Tablet Diameter (mm) 30 60
Depth of Fill (mm) 25 45
Maximum Tablet Thickness (mm) 12 22
Max. Output (pcs/h) 2070 2760
Motor Power (kW) 1.1 5.5
Overall Size (mm) 650x565x1610 660x860x1820
Approx. Net Weight (Kg) 250 770
