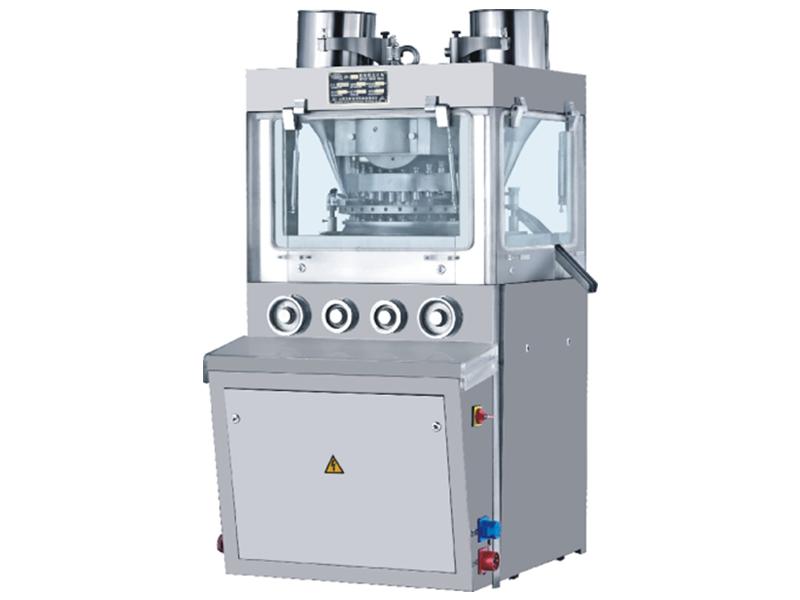

The rotary tableting press ZP35D/ZP37D/ZP41D is a small-sized automatic continuous rotary table-type tablet press designed for the pressing of granular materials that contain less than 10% of powder into 4-22 mm round, letter-engraved, or shaped tablets. This equipment is primarily used for foodstuff, electric cell, chemical, and ceramic industrial applications. The machine should not be used for semi-solid, damp, moisture-absorptive, or non-granular materials with a low melting point.
Model | ZP41D | ZP37D | ZP35D |
Number of Stations | 41 | 37 | 35 |
Tooling Type | ZP | ZP | ZP |
Main Compression Force (kN) | 80 | 80 | 80 |
Maximum Tablet Diameter (mm) | 13 | 13 | 13 |
Depth of Fill (mm) | 15 | 15 | 15 |
Maximum Tablet Thickness (mm) | 6 | 6 | 6 |
Max. Turret RPM (r/min) | 36 | 36 | 36 |
Max. Output (pcs/h) | 177000 | 160000 | 151200 |
Motor Power (kW) | 4 | 4 | 4 |
Overall Size (mm) | 910x1120x1700 | 910x1120x1700 | 910x1120x1700 |
Approx. Net Weight (Kg) | 1850 | 1850 | 1850 |
