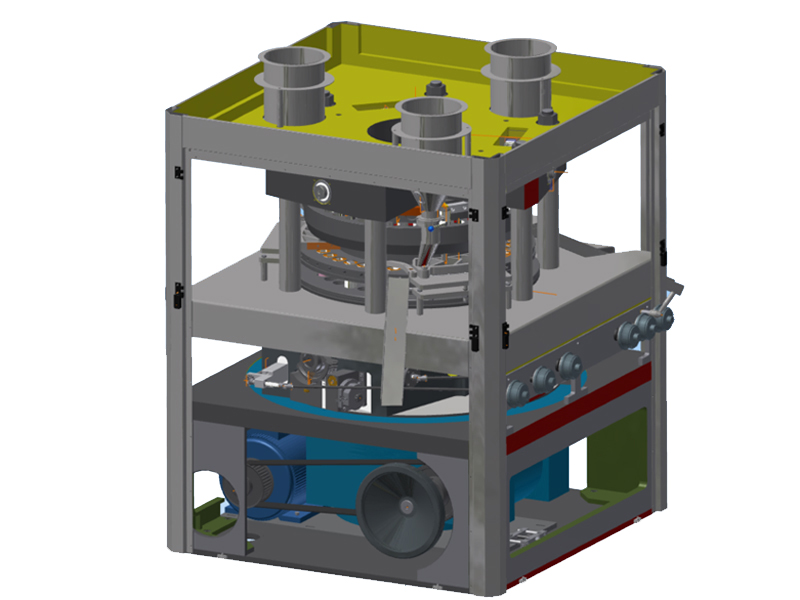

Rotary Tablet Press, ZPW800

Rotary Tablet Press, ZPW800

The pharmaceutical tablet press is designed with 3-sided compression to produce tablets, making it suitable for pressing hard-forming materials into tablets with large size, such as milk tablets, effervescent tablet, calcium tablet, dishwashing tablet, salt tablet, etc. With the tablet press machine, the tablets can be made in different shapes and layers to meet market needs in different industries pharmaceutical, chemistry, foodstuff and electronic, etc. This pharmaceutical equipment is very easy to operate and control, because all parameters can be set and displayed on the touch screen.

Specifications
Model ZPW-37
Number of Stations 37
Max Main Pressure (KN) 200
Max Tablet Diameter (mm) 45
Max Filling Depth (mm) 45
Max Tablet Thickness (mm) 20
Max Turret Speed (r/min) 16
Max Production Capacity for triple layer tablets (pcs/h) 35520
Punch length (mm) 205mm
Punch diameter (mm) 50mm
Outer diameter of die (mm) 60mm
Height of die (mm) 56mm
Motor Power (kw) 22
Overall Size (mm) 1930x1800x2020mm
Machine Weight (kg) 6500
Inquiry
Tags
Rotary tablet press pharmaceutical machine tablet press machine
Related Product

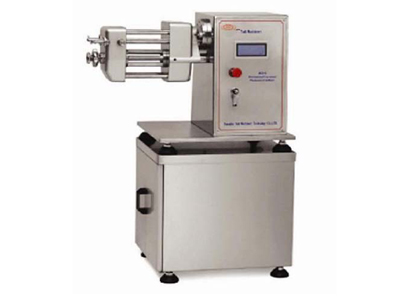

    1. Experimental Pharmaceutical Equipment, SD-II
    2. Experimental Pharmaceutical Equipment, SD-II

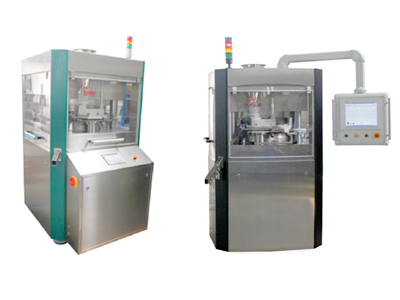

    1. High Speed Rotary Tablet Press Machine, GZP-570
    2. High Speed Rotary Tablet Press Machine, GZP-570

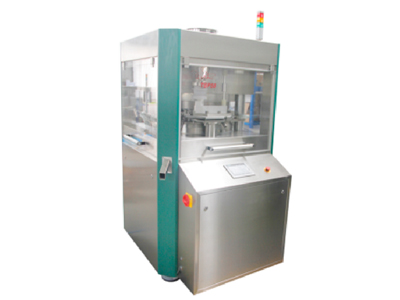

    1. Rotary Tablet Press, GZP570
    2. Rotary Tablet Press, GZP570

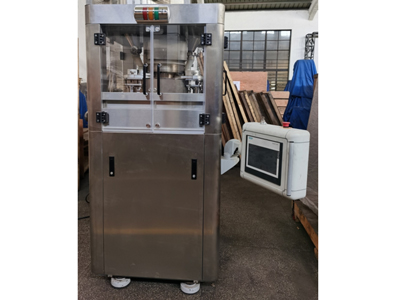

    1. Rotary Tablet Press Machine, ZP252
    2. Rotary Tablet Press Machine, ZP252
Products
  • Tablet Press
    1. GZP(K)730 Series High Speed Rotary Tablet Press
    2. GZP(K)620 Series High Speed Rotary Tablet Press
    3. GZP(K)520 Series High Speed Rotary Tablet Press
    4. GZP500 Series High Speed Rotary Tablet Press
    5. GZPK370 Series High Speed Rotary Tablet Press
    6. ZP1100 Series Rotary Tablet Press
    7. ZP41A/ZP45A Series Rotary Tablet Press
    8. ZP35B/ZP37B/ZP39i Rotary Tablet Press
    9. ZP35D/ZP37D/ZP41D Series Rotary Tablet Press
    10. ZP31/ZP29/ZP27 Series Rotary Tablet Press
    11. ZPW23 Series Multi-functional Rotary Tablet Press
    12. ZPW125 Series Multi-functional Rotary Tablet Press
    13. Core-covered Tablet Press
    14. ZPW500 Series Multi-functional Rotary Tablet Press
    15. ZP198 Series Rotary Tablet Press
    16. ZP265 Series Rotary Tablet Press
    17. ZPW21A/ZPW21B Series Multi-functional Rotary Tablet Press
    18. ZP17E/ZP19E Series Rotary Tablet Press
    19. ZP11(B)/ZP18(B) Series Rotary Tablet Press
    20. ZP130 Series Rotary Tablet Press
    21. THP-4/THP-10 Series Benchtop Model Single-Punch Tablet Press
    22. ZP17/19/25/33 Series Rotary Tablet Press
    23. Single Punch Tablet Press DP-12/DP-25
    24. Single Punch Tablet Press TDP
    25. High Speed Rotary Tablet Press Machine, GZP-570
    26. Rotary Tablet Press, GZP570
    27. Rotary Tablet Press Machine, ZP252

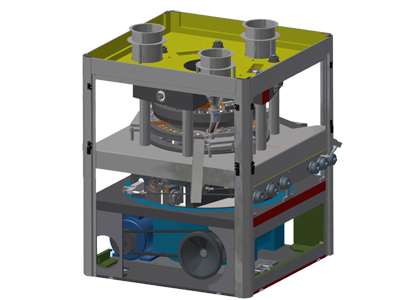

    28. Rotary Tablet Press, ZPW800
