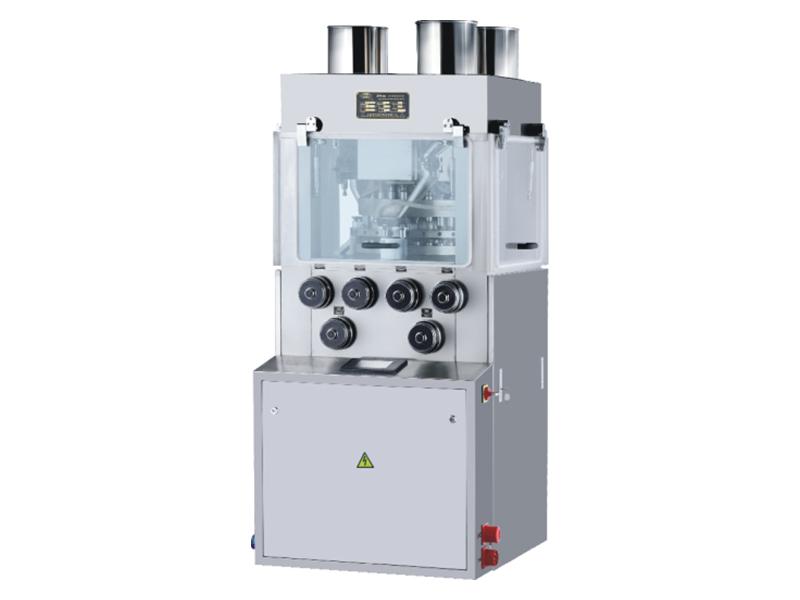

The rotary triple-color tableting press has a wide scope of application. In addition to producing round shape tablets, it can also produce irregular, ring-shaped or double engraved tablets. Additionally, it can be used to produce single layer tablets, double layer, or even triple layer tablets for different demands for more than just pharmaceutical applications. The equipment is also utilized by foodstuff, chemical, ceramic, electronic, and battery companies.
Model | ZPW25 | ZPW31 | ZPW37 |
Number of Stations | 25 | 31 | 37 |
Tooling Type | D | B | BB |
Main Compression Force (kN) | 80 | 80 | 80 |
Maximum Tablet Diameter (mm) | 25 | 18 | 13 |
Depth of Fill (mm) | 18 | 18 | 18 |
Maximum Tablet Thickness (mm) | 7 | 7 | 7 |
Max. Turret RPM (r/min) | 20 | 35 | 40 |
Max. Output (pcs/h) | 30000 | 65100 | 88800 |
Motor Power (kW) | 4 | 4 | 4 |
Overall Size (mm) | 1050x900x1880 | 1050x900x1880 | 1050x900x1880 |
Approx. Net Weight (Kg) | 2000 | 2000 | 2000 |
