Multiple Station Tablet Rotary Press ZPW500

ZPW500 Series Multi-functional Rotary Tablet Press
ZPW500 Series Multi-functional Rotary Tablet Press ZPW500 Series Multi-functional Rotary Tablet Press

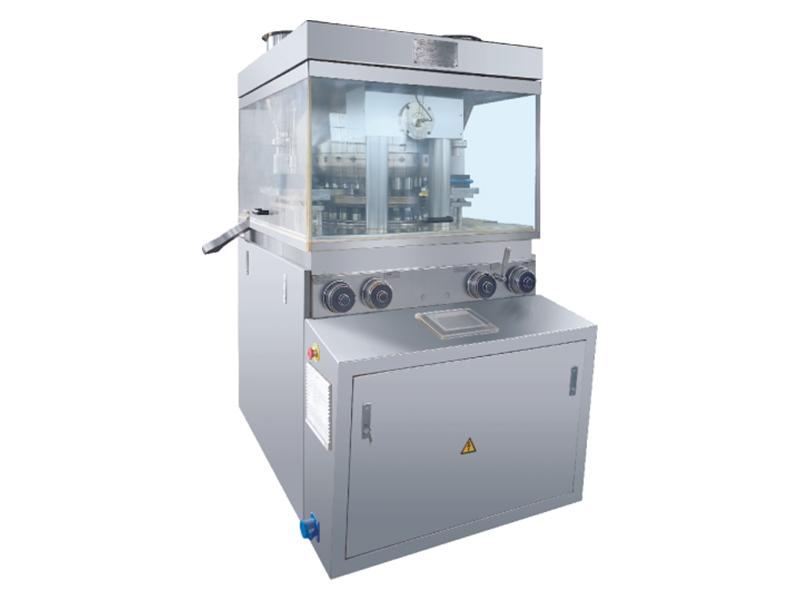

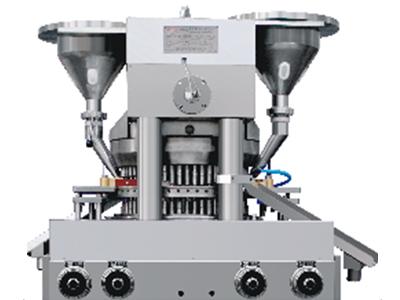

This rotary tablet press machine is a high performance piece of tablet making equipment. It an economical choice for the batch production of all types of round tablets, irregular tablets, and tablets with engravings on each side. The machine has a force feeder device, a vacuum conveyor, a pre-pressure device, a high speed turret, PLC, and a protective device in case of upper punch failure.

Specification:
Model ZPW27 ZPW33 ZPW41 ZPW55
Number of Stations 27 33 41 55
Main Compression Force (kN) 200 200 200 200
Maximum Tablet Diameter (mm) 40 30 20 11
Depth of Fill (mm) 35 35 35 35
Max. Turret RPM (r/min) 15 20 28 35
Max. Output (pcs/h) 48600 79200 138000 231000
Motor Power (kW) 15 15 15 15
Overall Size (mm) 1360x1050x1848 1360x1050x1848 1360x1050x1848 1360x1050x1848
Approx. Net Weight (Kg) 3800 3800 3800 3800
