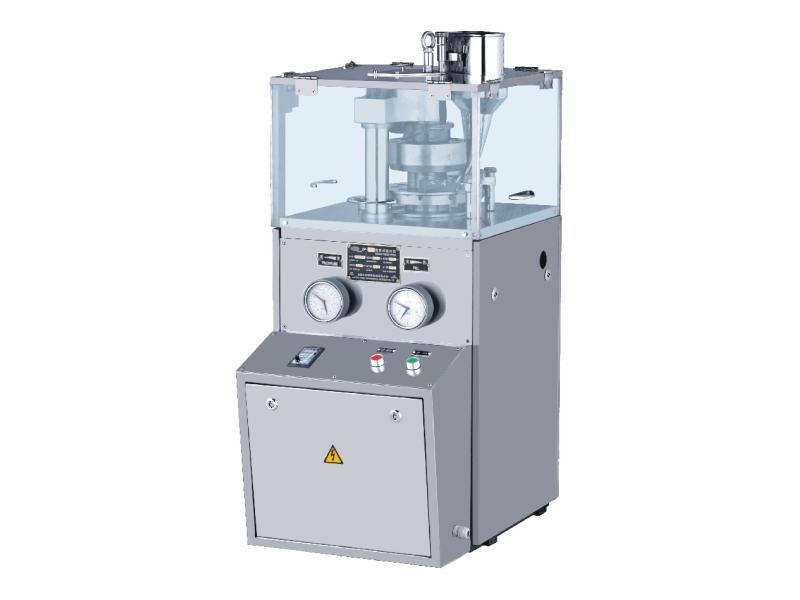

Rotary Tableting Press ZP130

ZP130 Series Rotary Tablet Press

This rotary tableting press is an automatic continuous rotary tablet press. As a basic piece of equipment to press granular materials into tablets, it is suitable for pressing a wide variety of shaped tablets, sugar tablets, and calcium tablets in small batches. However, this rotary tableting press is not applicable for semisolid and damp powder materials.

Specification:
Model ZP5A/B ZP7A/B ZP9A/B
Number of Stations 5 7 9
Main Compression Force (kN) 40/60 40/60 40/60
Maximum Tablet Diameter (mm) 13/20 13/20 13/20
Depth of Fill (mm) 15 15 15
Maximum Tablet Thickness (mm) 6 6 6
Max. Turret RPM (r/min) 25 25 25
Max. Output (pcs/h) 7500 10500 12000
Motor Power (kW) 1.5/2.2 1.5/2.2 1.5/2.2
Overall Size (mm) 660x480x1050 660x480x1050 660x480x1050
Approx. Net Weight (Kg) 350 350 350
