High Speed Tablet Press Machine, Rotary Tablet Press, GZP-570

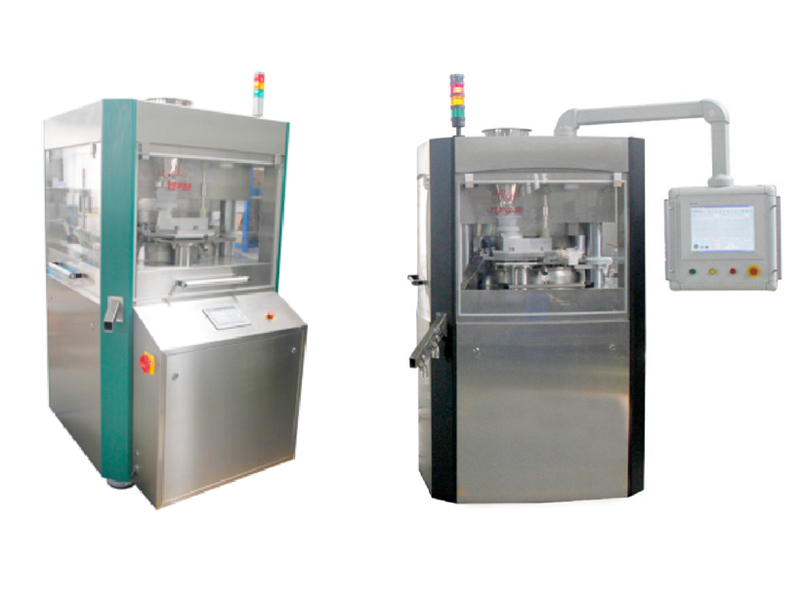

High Speed Rotary Tablet Press Machine, GZP-570

Pharmaceutical Machinery
Designed with touch screen digital display, the rotary tablet press is very easy to control, ensuring accurate and efficient table pressing jobs. With innovative tablet pressing technology, round and irregular shaped tables can be produced by this tablet press machine, with the filling capacity of up to 452400 pcs/h. This machine is ideally suitable for production in pharmaceutical, chemistry, foodstuff and electronic industries.

Specifications
Model GZP -41 GZP -51 GZP -61 GZP -65
Number of Stations 41 51 61 65
Tooling Standard D B BB BBS
Max Main Pressure (KN) 100
Max Pre-pressure (KN) 40
round tablet 25 18 13 11
Max Tablet Diameter (mm) irregular tablet 25 19 16 13
Max Filling Depth (mm) 21 18
Max Tablet Thickness (mm) 8 6
Max Turret Speed (r/min) 58 58 58 58
Max Production Capacity (pcs/h) 285360 354960 424560 452400
Motor Power (kw) 7.5
Overall Size (mm) 1425×1150×2245
Machine Weight (kg) 3800
