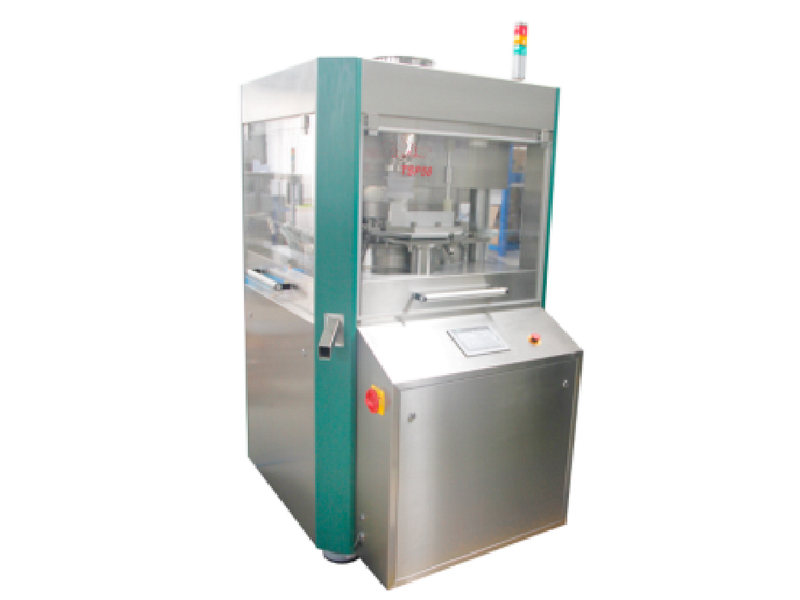

Rotary Tablet Press, Tablet Press Machine, GZP570
Pharmaceutical Equipment
With a reliable tableting system, precise production is greatly ensured. Featuring with stainless steel enclosure, the tablet press fully conforms to GMP and safety requirement. All the parameters can be easily adjusted, realizing easy operation with high precision. With a large amount of punches, mass production can be made by this tablet press machine. This pharmaceutical equipment is used for pressing granular materials into round and irregular tablets in the fields of pharmaceutical, chemistry, foodstuff and electronic industries.
Specifications
| Model | GZP-41 | GZP-51 | GZP-61 | GZP-65 | |
| Number of Stations | 41 | 51 | 61 | 65 | |
| Tooling Type | D | B | BB | BBS | |
| Max Main Pressure (KN) | 100 | ||||
| Max Pre-pressure (KN) | 40 | ||||
| round tablet | 25 | 18 | 13 | 11 | |
| Max Tablet Diameter (mm) | irregular tablet | 25 | 19 | 16 | 13 |
| Max Filling Depth (mm) | 20 | 18 | 15 | 15 | |
| Max Tablet Thickness (mm) | 10 | 8 | 6 | 6 | |
| Max Turret Speed (r/min) | 60 | ||||
| Max Production Capacity (pcs/h) | 295200 | 367200 | 439200 | 468000 | |
| Motor Power (kw) | 7.5 | ||||
| Overall Size (mm) | 1420×1200×1850 | ||||
| Machine Weight (kg) | 3500 | ||||
Features
High performance electrical control system, ensure each program processing precisely.
