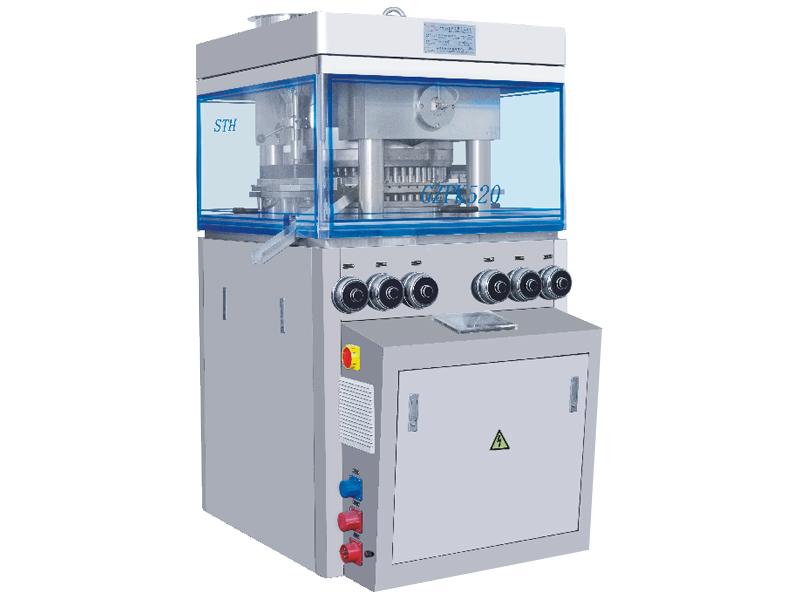

High Speed Rotary Tableting Press GZP(K)520

Features of our High Speed Rotary Tableting Press GZPS-520

• This high speed rotary tableting press adopts an upper impeller to enhance the fluidity of powder and equalizes its density. It also has 2 lower impellers to achieve equal and accurate filling and dosing.
• It has a 10 inch touch screen allowing the operator to view information stored and reset settings conveniently.
• Different degrees of user passwords can be set.
• This high speed rotary tableting press also has a B&R PCC control system that enables a quick and accurate response.

Specification:

Model	GZP(K)-37	GZP(K)-45	GZP(K)-55	GZP(K)-59
Number of Stations	37	45	55	59
Tooling Type	D	B	BB	BBS
Main Compression Force (kN)	100	100	100	100
Pre Compression Force (kN)	20	20	20	20
Maximum Tablet Diameter (mm)	25	18	13	11
Depth of Fill (mm)	20	18	15	15
Maximum Tablet Thickness (mm)	8	7	6	6
Max. Turret RPM (r/min)	80	80	80	80
Max. Output (pcs/h)	355200	432000	528000	566400
Motor Power (kW)	11	11	11	11
Overall Size (mm)	1420x1200x1850	1420x1200x1850	1420x1200x1850	1420x1200x1850
Approx. Net Weight (Kg)	3500	3500	3500	3500
