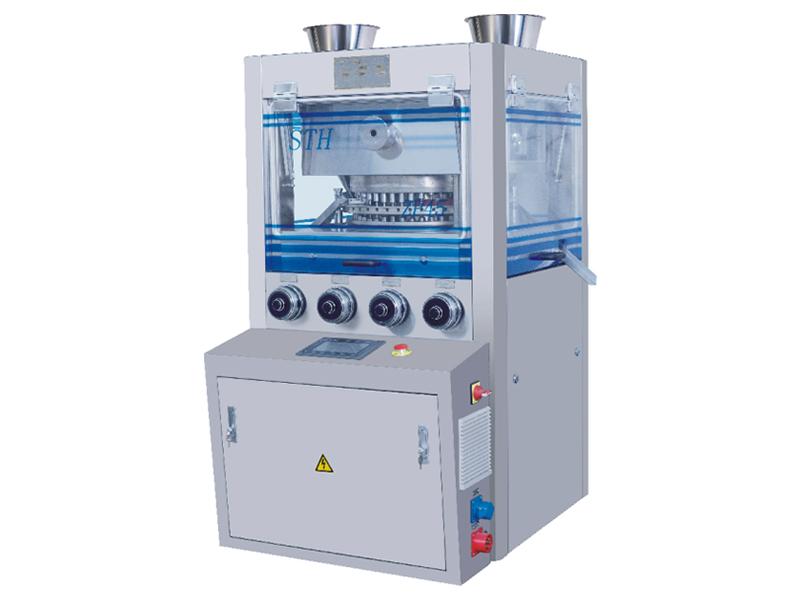

Rotary Tableting Press ZP41A/ZP45A

ZP41A/ZP45A Series Rotary Tablet Press
ZP41A/ZP45A Series Rotary Tablet Press ZP41A/ZP45A Series Rotary Tablet Press

This rotary tableting press is an automatic continuous rotary tablet press. As a simple piece of equipment used to press granular materials into tablets, it is often applied to the pressing of round and specially shaped tablets, sugar tablets, and calcium tablets in small batches and large varieties. The rotary tableting press is not suitable for semisolid or damp powder materials.

Specification:
Model ZP41A ZP45A
Number of Stations 41 45
Tooling Type ZP ZP
Main Compression Force (kN) 80 80
Maximum Tablet Diameter (mm) 20 13
Depth of Fill (mm) 15 15
Maximum Tablet Thickness (mm) 6 6
Max. Turret RPM (r/min) 45 45
Max. Output (pcs/h) 221400 243000
Motor Power (kW) 4 4
Overall Size (mm) 1120x980 x1720 1120x980 x1720
Approx. Net Weight (Kg) 2000 2000
