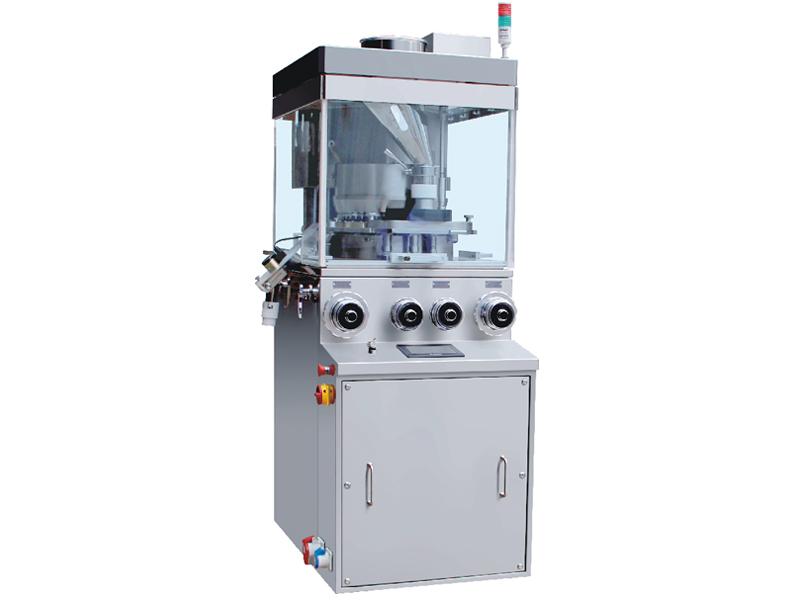

High Speed Rotary Tableting Press GZPK370

GZPK370 Series High Speed Rotary Tablet Press
Applications

The high speed rotary tableting press GZPK370 is a rotary tablet press for pressing tablets out of granular materials. It is mainly adopted for applications in pharmaceutical, foodstuff, chemical and electronics industries.

Features of the High Speed Rotary Tableting Press GZPK370
  • This high speed rotary tableting press adopts frequency speed control.
  • It has an air intake adjuster for eliminating dust from the tablet pressing chamber.
  • Accurate tablet weight control system enables easy rejection of degraded tablets in batches or individually.
  • Various types of impellers are available for different material types.
Specification:
Model GZP(K)-26 GZP(K)-32 GZP(K)-40 GZP(K)-44
Number of Stations 26 32 40 44
Tooling Type D B BB BBS
Main Compression Force (kN) 80 80 80 80
Pre Compression Force (kN) 20 20 20 20
Maximum Tablet Diameter (mm) 25 18 13 11
Depth of Fill (mm) 16 16 16 16
Maximum Tablet Thickness (mm) 6 6 6 6
Max. Output (pcs/h) 140000 192000 264000 291000
Motor Power (kW) 7.5 7.5 7.5 7.5
Overall Size (mm) 1200x950 x1850 1200x950 x1850 1200x950 x1850 1200x950 x1850
Approx. Net Weight (Kg) 1700 1700 1700 1700
