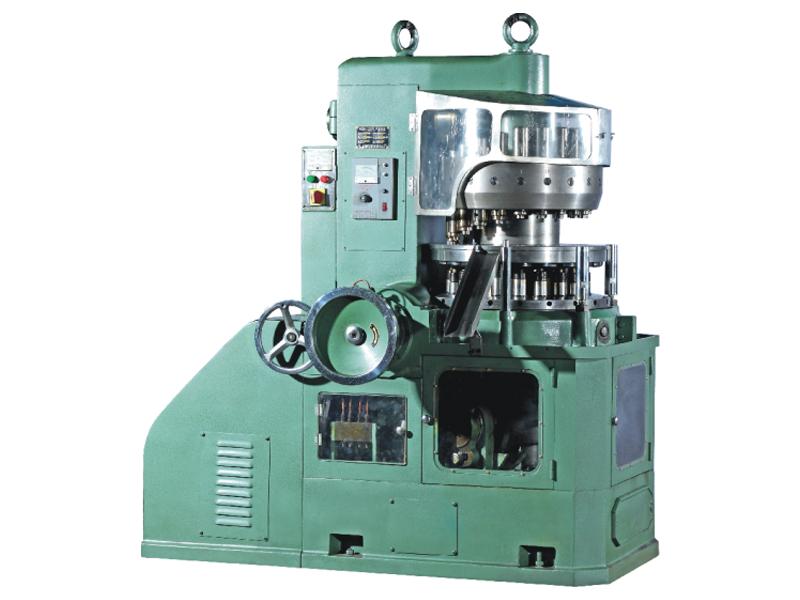

Powder Forming Machine YH15/YH17/YH20

Powder Forming Machine YH15/YH17/YH20
Powder Forming Machine YH15/YH17/YH20 Powder Forming Machine YH15/YH17/YH20

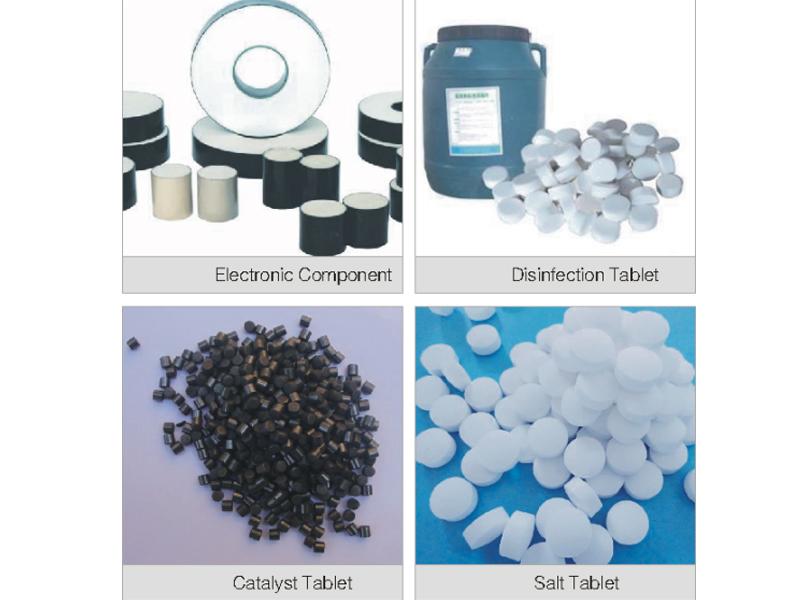

This powder forming machine YH20 is a special piece of equipment used to form powders in petroleum, chemical, metallurgical, pharmaceutical, electronic, food and light industrial applications. It can be used as a rice powder forming machine, an egg powder forming machine, a fish powder forming machine, a potato powder forming machine, etc. With different molds, the machine can press the powdered materials into various shapes.

Specification:
Model YH15 YH17 YH20
Number of Stations 15 17 20
Main Compression Force (kN) 250 250 250
Maximum Tablet Diameter (mm) 55 50 40
Depth of Fill (mm) 70 70 57
Maximum Tablet Thickness (mm) 32 32 25
Max. Turret RPM (r/min) 12 12 12
Max. Output (pcs/h) 10800 12240 14400
Motor Power (kW) 7.5 7.5 7.5
Overall Size (mm) 1660x1220x1870 1660x1220x1870 1660x1220x1870
Approx. Net Weight (Kg) 3800 3800 3800
