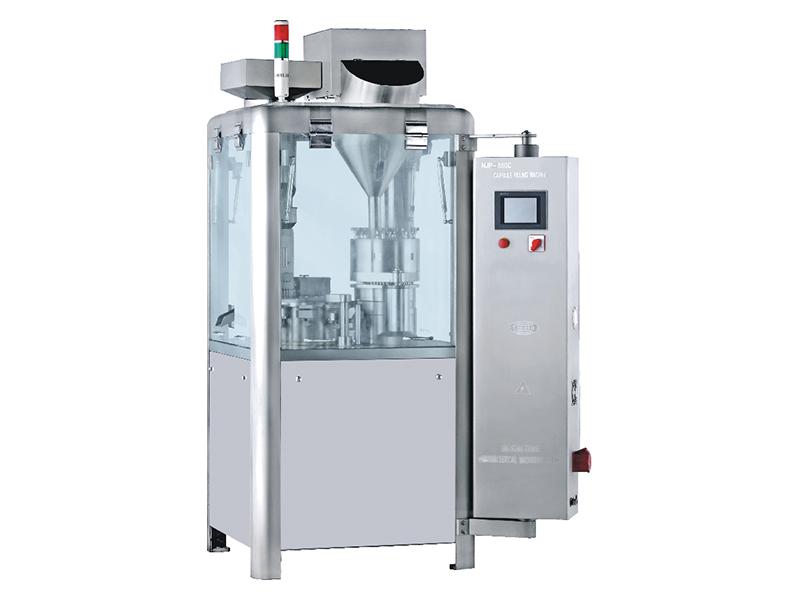

High Speed Automatic Capsule Filler NJP3500

High Speed Automatic Capsule Filler NJP3500

This high speed automatic capsule filler is a CE certified high speed automatic capsule filling machine. It is used for filling powders, pellets, granules, pills into capsules.

Features of the High Speed Automatic Capsule Filler NJP3500
  • This automatic capsule filler comes with a touch-screen, PLC, and HMI.
  • It has a capsule vacuum positioned mechanism to increase the yield to over 99%.
  • Its removable powder hopper makes it easy to adjust the filling weight.
  • The filling speed and the capsule length can be easily adjusted.
  • The changeable parts of this high speed automatic capsule filler, like rotary table and ring carrier assembly, can be quickly and easily switched.
Specification:
Model NJP200 NJP400 NJP600 NJP800 NJP1200 NJP2000 NJP3500
Filling dosage form Powder, Granule, Pellet, Tablet
Output(pcs/min) 200 400 600 800 1200 2000 3500
Capsule size No.00-No.5 No.00-No.5 No.00-No.5 No.00-No.5 No.00-No.5 No.00-No.5 No.00-No.5
Qualified rate >99% >99% >99% >99% >99% >99% >99%
Precision < 4% < 4% < 4% < 4% < 4% < 4% < 4%
Power (kW) 3 3 3 4 5 8 10.5
Noise(dB) < 80 < 80 < 80 < 80 < 80 < 80 < 80
Overall size (mm) 610x670x1700 730x950x1700 840x960x1800 840x960x1800 910x980x1800 1160x1250x1900 1170x1560x2000
Approx. net weight (Kg) 700 800 900 900 1100 1500 2200
