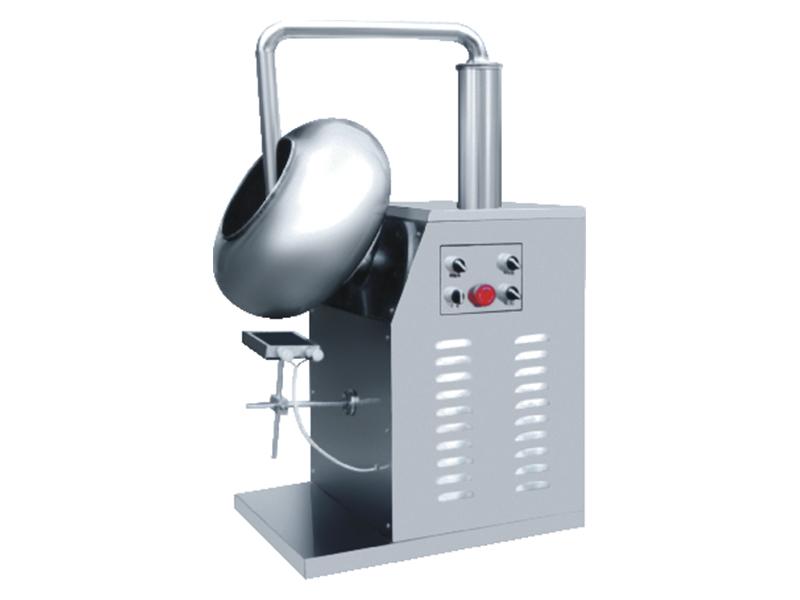

Sugar Coating Machine BY300/400

Sugar Coating Machine BY300/400

The sugar coating machine BY300/400 is a coating machine that is used for the sugar coating of tablets and pills in pharmaceutical and food industrial applications. The type A sugar coating machines feature a bowl shape with variable rotation speed.

Specifications of Sugar Coating Machine BY300/400
TYPE\ITEM BY300 BY400 BY300A BY400A
Diameter 300 mm 400 mm 300 mm 400 mm
Production Capacity 2 kg 5 kg 2 kg 5 kg
Scope 15°45°
Rotation Speed r/min n1=42,n1=46 5-50
Main Motor0.55kw 380v 0.55kw,380v 0.55kw,380v
Heat 600w 600w
Fan 35w,220v
Overall Size(W×D×H) 440×550×765mm 485×585×800mm 750×600×800mm
Net Weight (kg) 85 90 155
