Trough Type Mixing Machine CH Series

Trough Type Mixing Machine CH Series

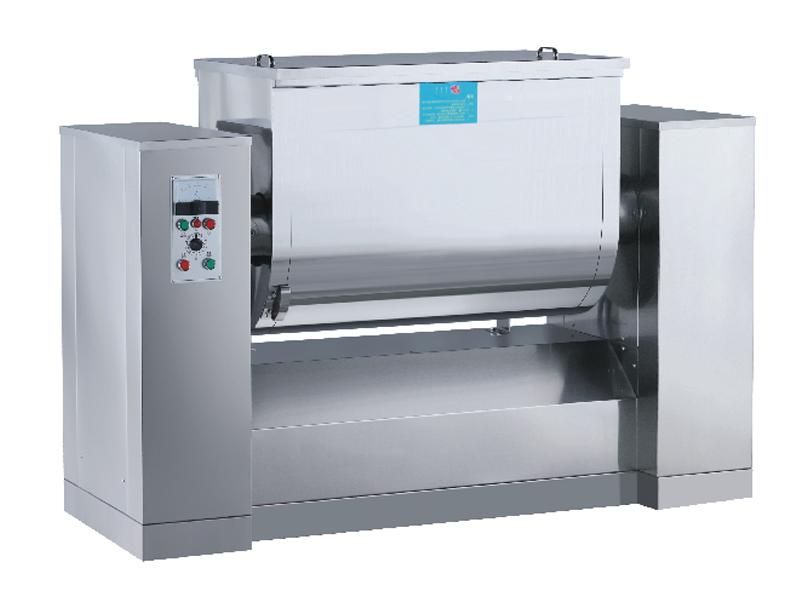

The trough type mixing machine is intended for a thorough mixing of powders and pastes. It is a horizontal mixer with a single stirring arm that is removable for an easy cleaning. This trough type mixing machine is also automatically reversible for material discharge. The mixing period is automatically adjusted.

Specification:
Model CH-10 CH-20 CH-50 CH-100 CH-150 CH-200 CH-300 CH-500
Trough Capacity(L) 10 20 50 100 150 200 300 500
Motor power（KW） 0.25 0.55 1.5 2.2 3 3 5.5 7.5
Mixing Arm Speed(rpm) 24 24 24 24 23 23 21 18
Discharging angle(°) 105 105 105 105 105 105 105 105
Weight (kg) 40 70 100 350 500 650 800 1200
Overall size (mm) 600*280*500 750*380*610 1200*500*650 1300*600*1000 1500*600*1200 1600*600*1200 1800*700*1250 2050*800*130
