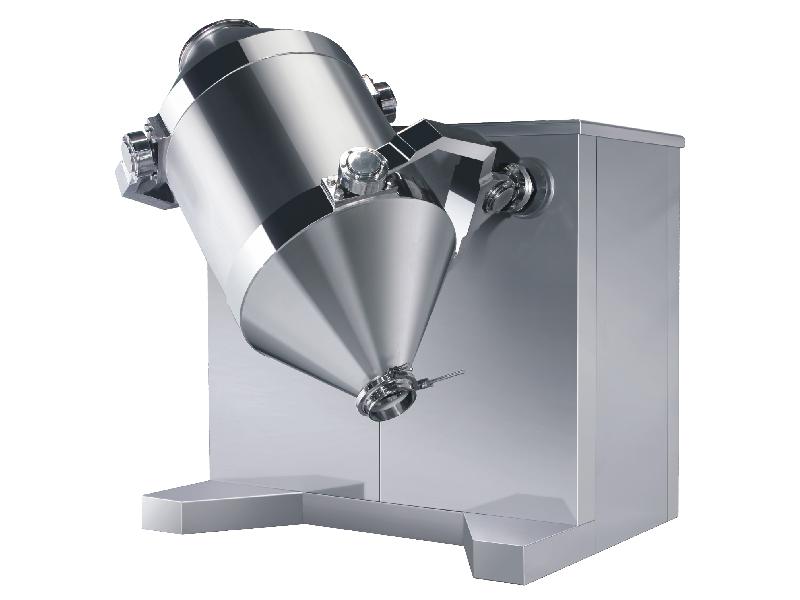

Multi-direction Movement Powder Mixer Machine HDJ

Multi-direction Movement Powder Mixer Machine HDJ

As a highly efficient powder mixing machine, this multi-direction movement powder mixer machine is used for high homogeneity mixing of powdery and particle materials in a variety of industries, including pharmaceutical, food, chemical, machinery, electronic, metallurgical, as well as light industries, national defense industry, and scientific research.

Specifications of Multi-direction Movement Powder Mixer Machine HDJ
Model HDJ-5 HDJ-15 HDJ-50 HDJ-100 HDJ-200 HDJ-400 HDJ-600 HDJ-800 HDJ-1000
Barrel volume ( L) 5 15 50 100 200 400 600 800 1000
Max loading volume ( L) 4 12 40 80 160 320 480 640 800
Max loading capacity ( kg) 2.4 7.5 25 50 100 200 300 400 600
Rotating speed of driving shaft (r/min) 15-30 15-30 15-30 15-30 15-30 15-30 8-15 8-15 8-15
Power of motor (kw) 0.25 0.37 1.1 1.5 2.2 4 5.5 7.5 7.5
Overall dimensions (L×W×H) mm 600*1000*1000 700*1000*1000 1000*1400*1200 1200*1700*1500 1400*1800*1600 1800*2100*1950 1900*2100*2250 2200*2400*2300 2250*2600*2300
Weight(kg) 150 200 300 500 800 1200 1500 2000 2500
