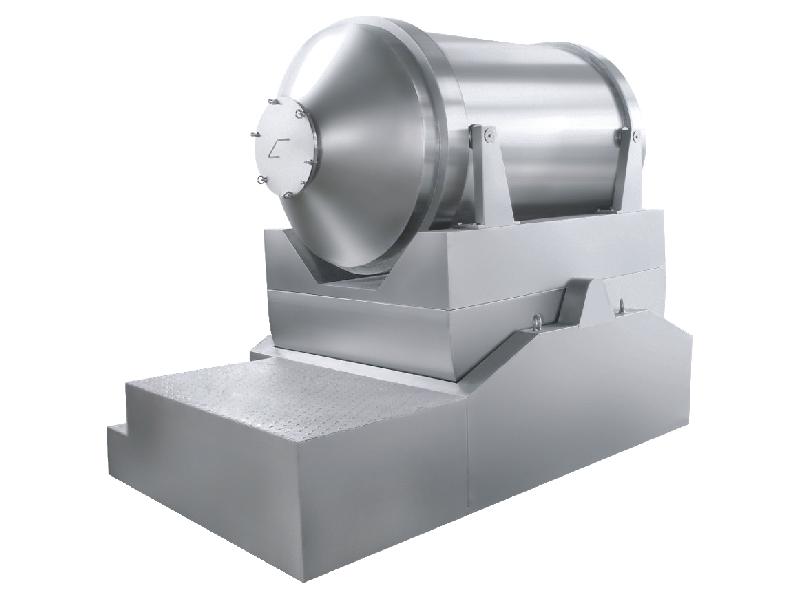

Rotary Batch Mixer

Rotary Batch Mixer
Application

The rotary batch mixers are widely used in pharmaceutical, chemical, food industries and especially suitable for mixing various solid materials with large volume.

Working principle

The rotary batch mixer blends the materials in rotating drum, ensuring that materials can be completely mixed. When the mixing process is completed, the materials will be quickly discharged through the discharge spout. This mixer features high volume mixing and high efficiency discharging.

Technical specification
Model Barrel volume (L) loading capacity(L) swing & rotation (rpm) total power(kw) Overall size(mm) Total weight(kg) Barrel weight(kg)
EYH-60 60 30 50 0.4 700×730×990 115 15
EYH-150 150 75 37 1.15 890×1070×1315 190 50
EYH-300 300 150 30 1.15 1010×1355×1570 340 60
EYH-600 600 300 23.6 3 1280×1790×2060 1150 140
EYH-1000 1000 500 19.8 3 1560×2280×2270 1700 240
EYH-2000 2000 1000 16.2 7.4 1800×2640×2730 2600 430
EYH-3000 3000 1500 13.8 11 2000×3100×3150 3500 620
EYH-4000 4000 2000 12.8 13 2100×3310×3380 4100 700
EYH-5000 5000 2500 11.9 15 2260×3590×3680 4800 780
EYH-6000 6000 3000 11.2 18.2 2400×3790×3870 6100 1100
EYH-7500 7500 3750 10.4 22 2600×4080×4150 7500 1400
EYH-10000 10000 5000 9.4 30 2900×4460×4370 9500 1650
