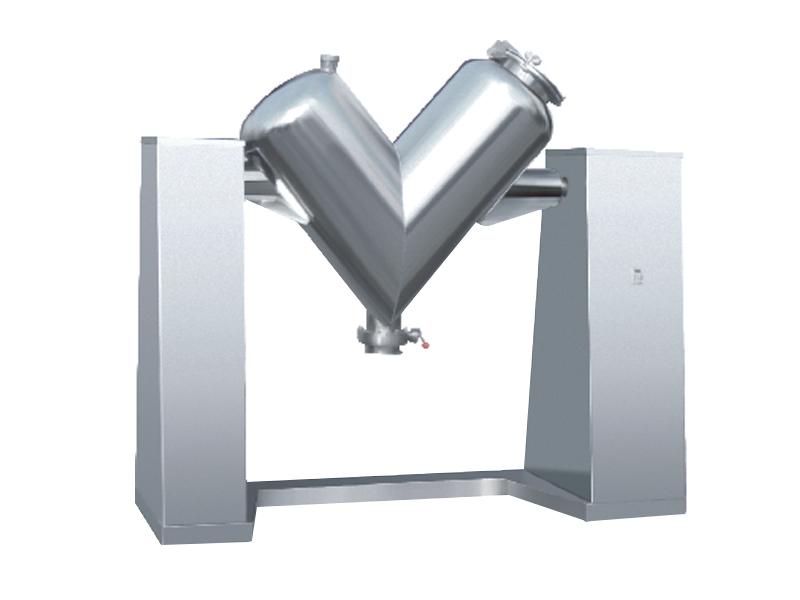

V-type Highly Efficient Powder Mixer

V-type High Efficient Powder Mixer

This V-type high efficiency powder mixer featured no blind angle mixing, a high mixing efficiency, and stainless-steel walls. Material charging is done either manually or through vacuum suction. With two V-type cylinders of different altitudes, the material repeatedly turns over, achieving a uniform mixing performance.

Specifications of V-type Highly Efficient Powder Mixer
Model V-0.1 V-0.2 V-0.3 V-0.5 V-1.0 V-1.5 V-2.0 V-2.5 V-3.0
Total Capacity(m³) 0.1 0.2 0.3 0.5 1.0 1.5 2.0 2.5 3.0
Loading Factor 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4
Max. Loading Capacity(L) 40 80 120 200 400 600 800 1000 1200
Overall Size(mm) 1900*600*1190 2270*700*1440 2320*800*1470 2520*900*1510 3040*1000*1765 3300*1000*1750 3700*1200*2000 3950*1500*2200 4100*1500*2140
