Sugar Coating, Film Coating Machine GBS

Sugar Coating, Film Coating Machine GBS
Sugar Coating, Film Coating Machine GBS Sugar Coating, Film Coating Machine GBS Sugar Coating, Film Coating Machine GBS Sugar Coating, Film Coating Machine GBS

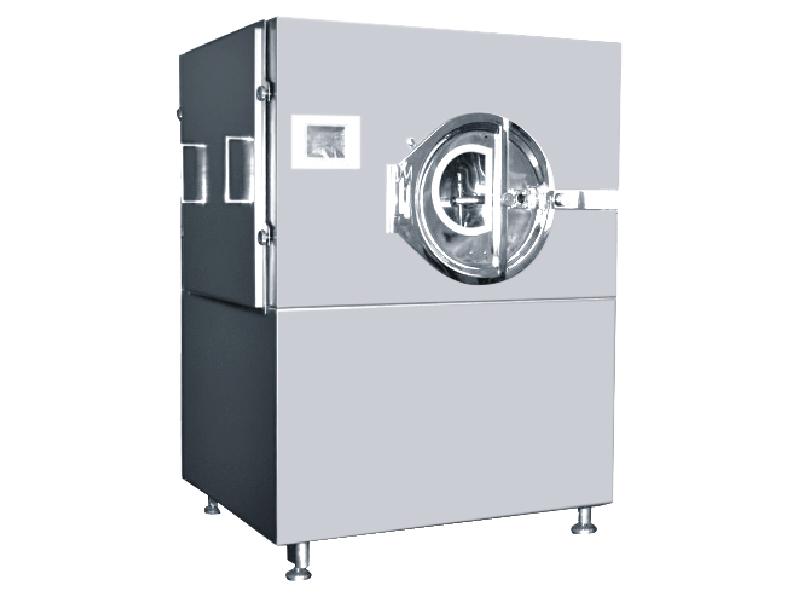

Our sugar coating, film coating machine GBS series is a highly efficient sugar coating and film coating machine mainly used for pharmaceutical and foodstuff industrial applications. With features like high efficiency, low energy consumption and simple operation, the equipment is essential for the application of sugar, organic film, water soluble film-coatings for tablets, pills, and sweets.

Specification:
Model GBS-10 GBS-40 GBS-75 GBS-150 GBS-400
Max. load capacity(kg) 10 40 50 150 400
Cylinder dimension(mm) 580 820 950 1200 1580
Inlet dimension(mm) 260 340 380 480 480
Roller speed(times/min) 3-25 3-20 3-18 3-18 3-15
Power(kW) 0.55 1.1 1.5 2.2 3.0
Weight(kg) 220 500 600 850 1000
Overall Size (mm) 900x840x2000 1180x850x1530 1390x1050x1720 1770x1310x2200 2500x1700x2800
