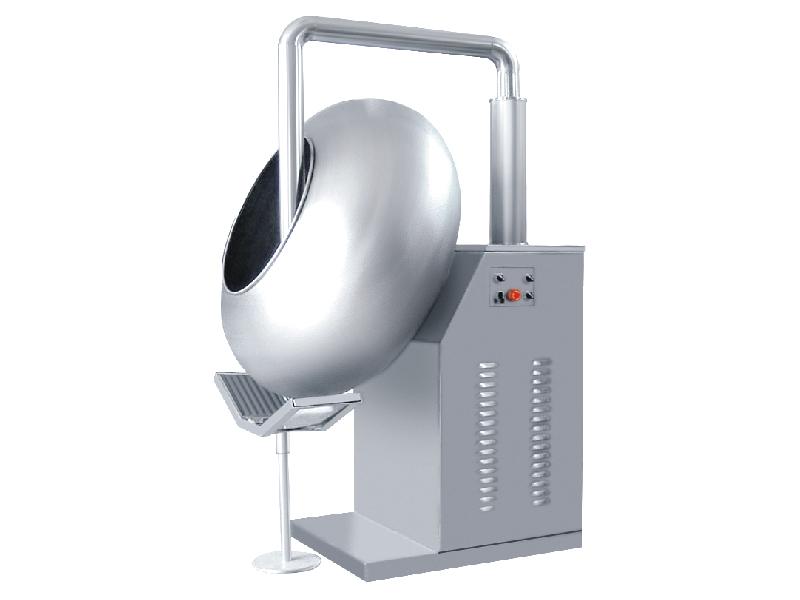

Sugar Coating Machine BY1000/800

Sugar Coating Machine BY

The sugar coating machine BY1000/800 can sugarcoat tablets and pills for pharmaceutical and food application. It is also applicable for rolling and heating beans and edible nuts or seeds. Characteristically, the sugarcoating pot of this machine is elevated with an angle of 30 ºC. Gas or electrical heaters can be placed directly under the pot. A separated blower with an electrical heater is provided with the machine.

Specification:
Model BY800 BY1000 BY1250
Dia. Of coating pan (mm) 800 1000 1250
Production capacity(kg) 30-50 50-70 80-150
Rotary speed(r/min) 32 32 28
Adjustable angle 15-45 15-45 15-45
Motor power(kW) 1.1 1.5 2.2
Blower fan power (W) 200 200 370
Heating power(W) 1500/2000 1500/2000 1500/2000
Overall Size (mm) 1150x800x1600 1150x1000x1430 1340x1250x1680
Weight (Kg) 240 250 400
