Monoblock Fill Plug Cap Machine, DYG

Monoblock Fill Plug Cap Machine, DYG
Monoblock Fill Plug Cap Machine, DYG Monoblock Fill Plug Cap Machine, DYG

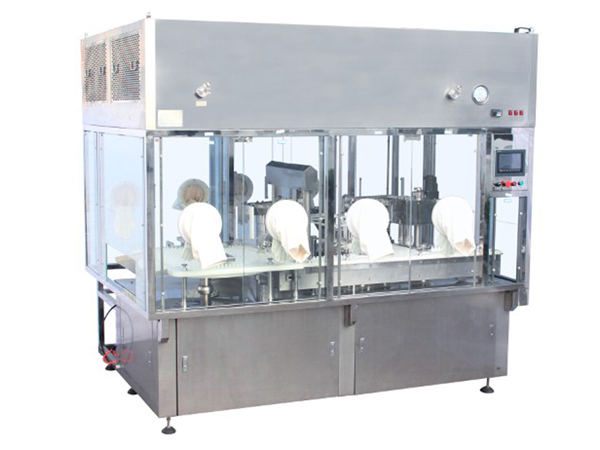

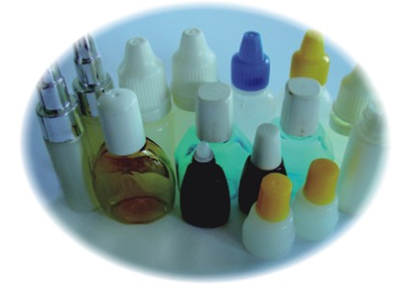

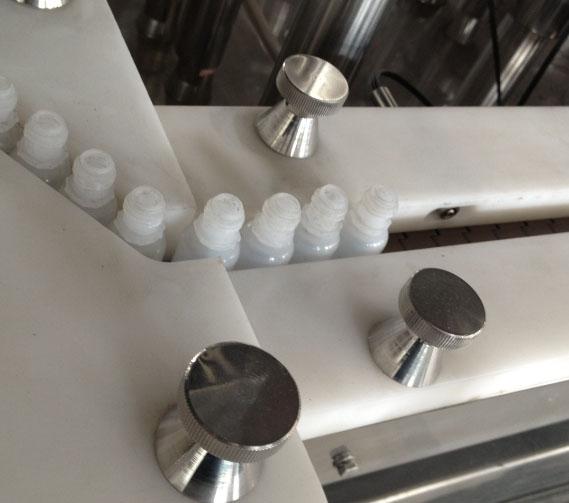

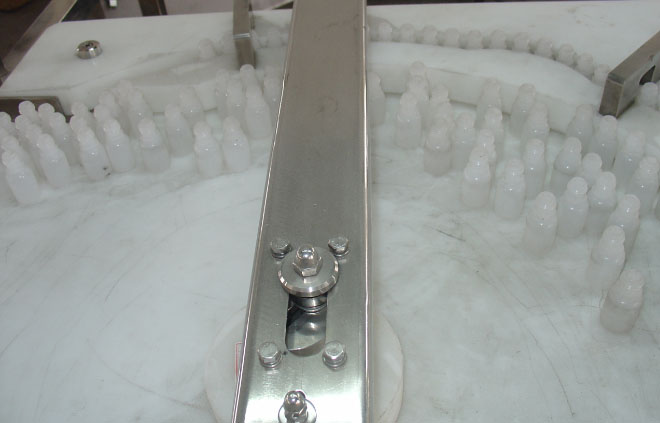

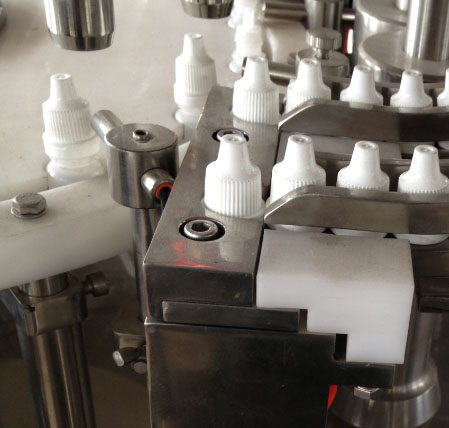

DYG monoblock fill plug cap machine is capable of filling liquid into small containers such as eye drop bottles and vials, and plugging and capping of corks, caps and other fitments. This automatic liquid filling, plugging and capping machine can be widely used in a wide array of industries including pharmacy, biology, food, daily necessities, cosmetics, etc.

Specifications
Max. output 60-100 bottles/min.

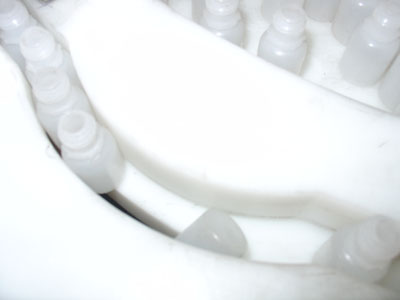

Applicable bottle Round shaped bottle
Filling method Servo peristaltic pump
Quantity of filling head 4 Heads
Filling accuracy ±0.3-0.5% (servo peristaltic pump)

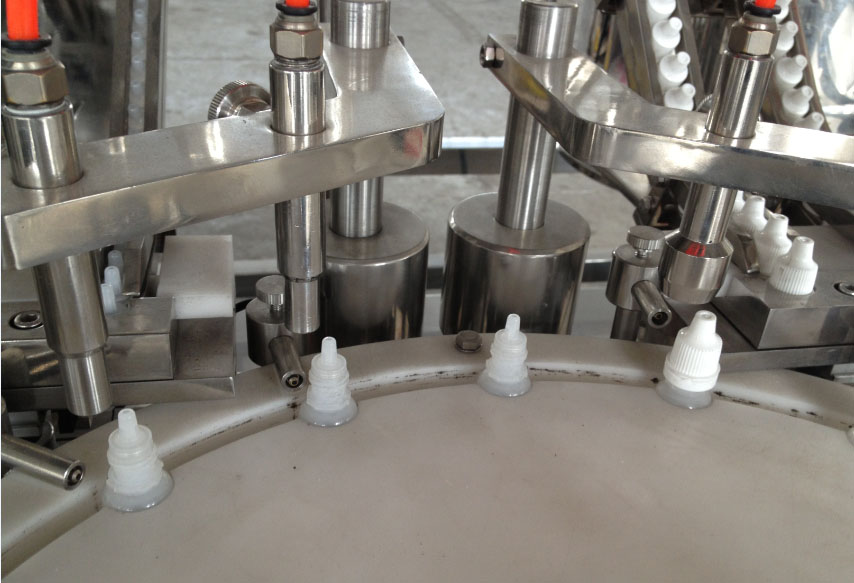

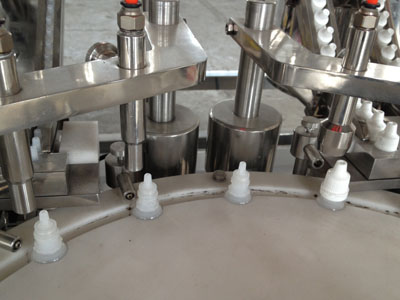

Quantity of plugging head 2 heads
Plugging rate ≥99%

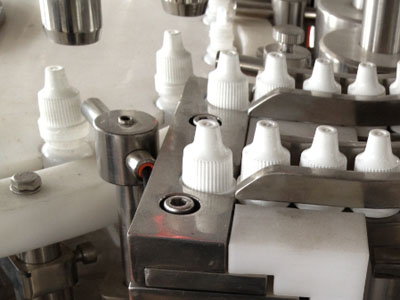

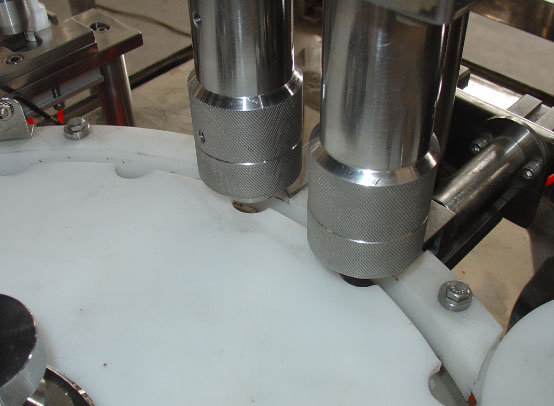

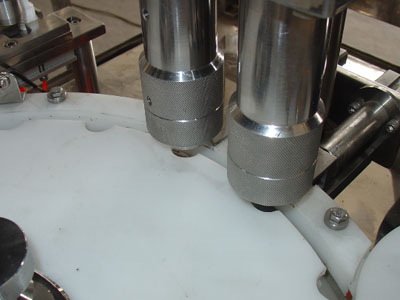

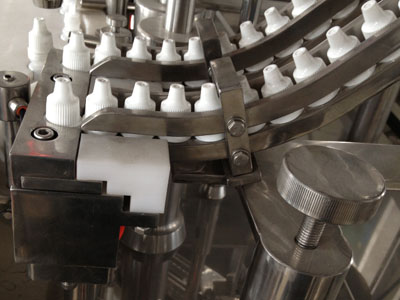

Quantity of capping head 2 heads
Capping Rate ≥99%
Compressed air 15~20m3/h 0.3~04kfg/cm2
Power 2KW
Overall size 2000*1400*1900mm
Net weight 800kg
