Automatic Tube Filling & Sealing Machine (Al tube), NF-80Z

Monoblock Fill Plug Cap Machine, DYG

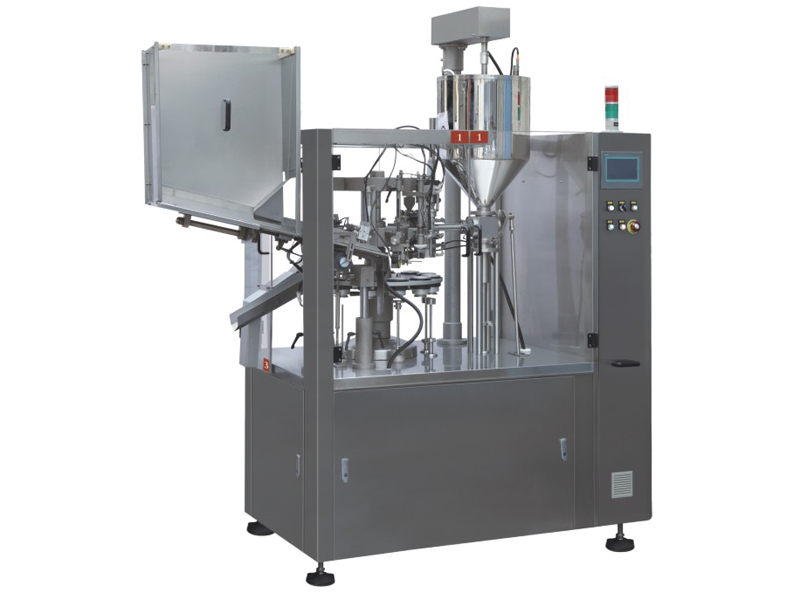

Tianhe automatic tube filling and sealing machine is typically developed and designed to perform outstanding automatic filling and sealing operations on aluminum tubes and laminated tubes with ointment, cream jellies, toothpaste, cosmetics and other viscous and semi-viscous products. With PLC control system with touch screen, programmable control with reliable operating of the tube filler is efficiently ensured. The operations such as tube folding and batch coding are automatically implemented. Our automatic tube filler and sealer machine is manufactured in compliance with GMP requirement, and applicable to a wide array of industries such as cosmetic, pharmacy, foodstuff and daily chemicals.

Specifications
Item Unit It is used in aluminum tube only
Productivity pcs/min 50-75
Filling volume ml 3-180(customized)
Tube diameter mm 12.5-35(customized)
Tube length mm 50-180(customized)
Power kw 1.5
Jacketed tank heating power kw 3
Jacketed tank stirring power kw 0.18
Filling precision ≤+/-1%
Air pressure MPa 0.4-0.6
Compressed air consumption m3/min. 1.5
Machine weight kg 1200
Dimension (L*W*H) mm 2500*1200*2400
Inquiry
Tags
Tube filling and sealing machine tube filler tube filling and sealing viscous product Filling
