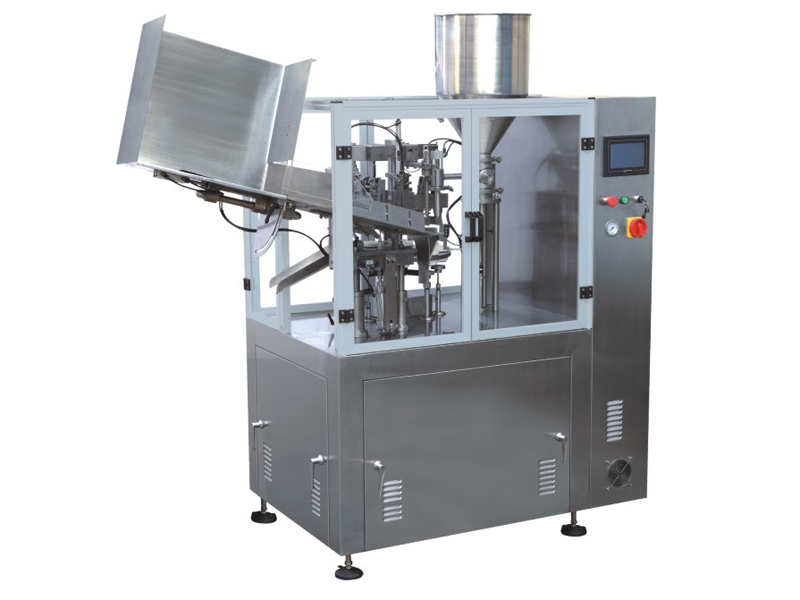

This automatic tube filling and sealing machine is specially designed to fill and seal plastic tubes with ointment, cream jellies, toothpaste, cosmetics and other viscous and semi-viscous products. Equipping with PLC control system and touch screen allows programmable control with reliable operating of this tuber filler sealer. The operations such as tube folding and batch coding are automatically implemented. This automatic tube filling and sealing machine is built in accordance with requirements of GMP standard, it is ideal filling machine for various industries including cosmetic, pharmacy, foodstuff, daily chemicals, etc.
Item | Unit | It is used in plastic tube only |
Productivity | pcs/min | 30-50 |
Filling volume | ml | 3-250(customized) |
Tube diameter | mm | 13-50(customized) |
Tube length | mm | 50-210(customized) |
Power | kw | 1.5 |
Hot air generator | kw | 3 |
Water chiller power | kw | 1.5 |
Jacketed tank heating power | kw | 2 (option) |
Jacketed tank stirring power | kw | 0.18 (option) |
Filling precision | ≤+/-1% | |
Air pressure | MPa | 0.4-0.6 |
Compressed air consumption | m3/min. | 1.5 |
Machine weight | kg | 850 |
Dimension (L*W*H) | mm | 1950*1000*1800 |
