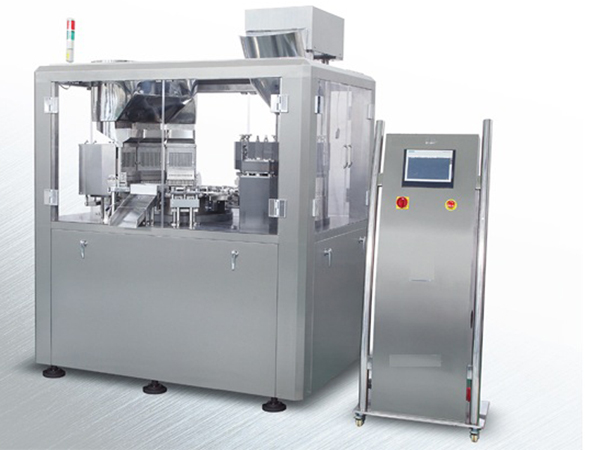

Automatic Capsule Filling Machine, NJP-7500C

Automatic Capsule Filling Machine, NJP-7500C
Specification:
Output 450000 pcs/h
Machine Weight 4500kg
Machine Dimensions 1885*1405*2023mm
Power Supply 380/220V 50Hz
Motor Power 17KW
No. of Segment Bores 54 holes
Dust 29kpa 318 m3/h
Noise ＜75DB（A）
Filling Precision > 99.8%
Filling Error ±2.5% ±3.5%
Main Features
  • Adopts 4 rows of 54 die holes, 12-station design, adapt to mass production.
  • The lock bag cleaning device is added. When the lock bag device locks the capsule, the lock bag cleaning block works to remove the fine dust raised during the locking.
  • The capsule control switch is added.
  • The inching control system is added to facilitate the humanized operation in production and cleaning.
  • The mechanism of capsule vacuum positioning and separation was used to make the rate of capsule on the machine more than 98%.
  • The equipment has automatic timing refueling system.
  • The module type closed powder filling mechanism is adopted, which is convenient for disassembly and cleaning.
  • With 10 inch color LCD screen, it can automatically alarm when it is short of capsule, powder, vacuum fault, machine door release, etc.
  • A new waste removal device is adopted, which can simultaneously inhale and blow air, greatly increasing the success rate of waste capsule removal.
