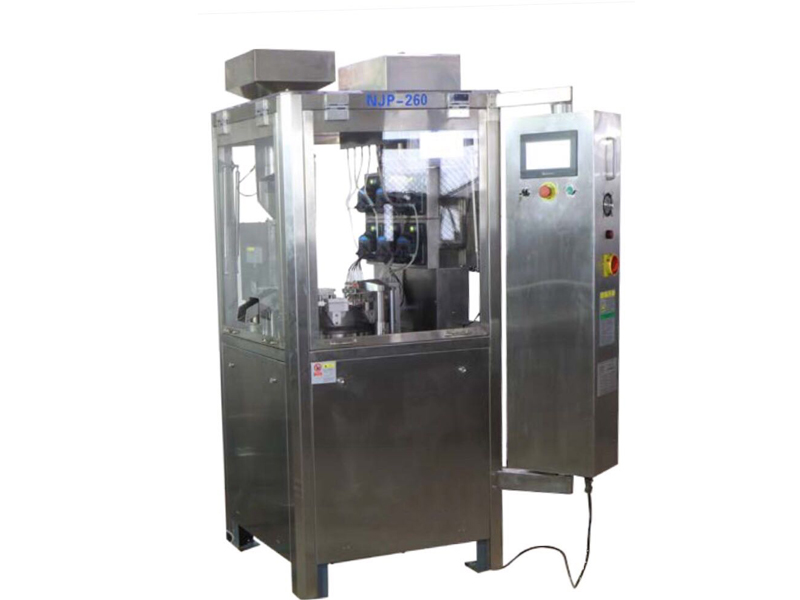

Automatic Capsule Filling Machine, NJP -260C Series

Automatic Capsule Filling Machine, NJP -260C Series
Automatic Capsule Filling Machine, NJP -260C Series Automatic Capsule Filling Machine, NJP -260C Series

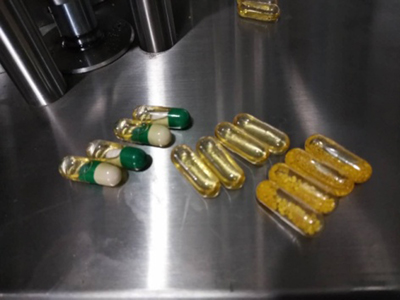

Filled with Liquid and Oil
The automatic capsule filling machine is specially designed to produce liquid-filled hard capsules. This capsule filling equipment adopts automatic frequency control of motor speed, making the operation easy and convenient. Equipped with an innovative dosing filling system, it's ideally suitable for use in the pharmaceutical, food, health care products industry.

Specifications
Model NJP-260C
Max. capacity 260pcs/min
Capsule filling type 00#~5#capsule
Filling Precision ≥99.5%
Noise ≤75dBA
Liquid filling quantity accuracy Liquid 300mg≤±3%
Compressed air (pressure) 0.06m³/min 0.3Mpa
Water requirement Tap water or recycle water
Vacuum ﹣0.02~﹣0.06 Mpa
The amount of water 250L/h
Incoming water pipe internal Dia. 20mm
Drain-pipe internal Dia. 27mm
Working Temperature 21℃±3℃
Working humidity 40~55%
Air displacement 300 m³/h
Control System Inverter & PLC control
Max. capacity 177,000pcs/h
Motor 5.75KW
Power Supply 380V 50Hz 3PH
Overall size 1020*860*1970mm
Net weight 900kg
