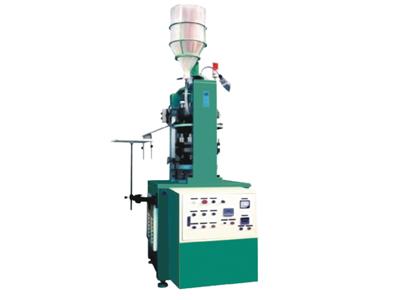

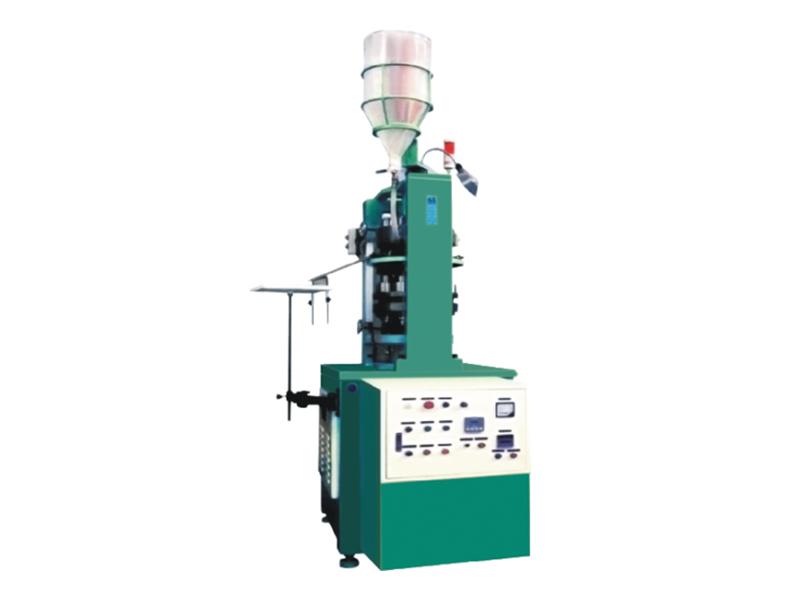

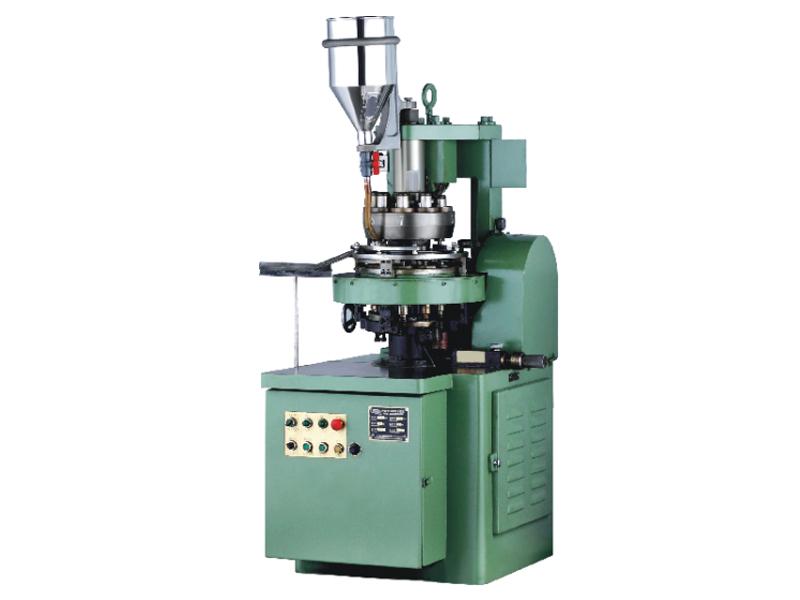

Powder Forming Machine RP200/RP300

Powder Forming Machine RP200/RP300
Powder Forming Machine RP200/RP300 Powder Forming Machine RP200/RP300
Application:

Cylinder, Rectangular, Half-moon, Multi-hole, Segmented, Super-thin Chips, U type and so on.

Specification:
Model RP200 RP300
Number of Stations 9 9
Main Compression Force (kN) 40 100
Maximum Tablet Diameter (mm) 10 28
Depth of Fill (mm) 22 45
Maximum Tablet Thickness (mm) 10 20
Max. Turret RPM (r/min) 25 18
Max. Output (pcs/h) 13500 9720
Motor Power (kW) 1.5 5.5
Overall Size (mm) 880x670x1700 930x860x2000
Approx. Net Weight (Kg) 550 1600
