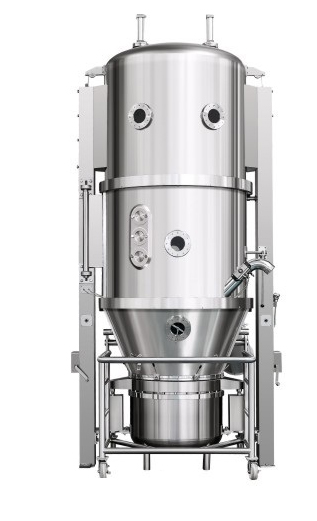

Fluid-Bed Granulator and Dryer, FL
The fluid-bed granulator & dryer is typically used for applications including blending, granulating, drying, pelletizing and coating in pharmaceutical industries.
Applications
Drying: powder or granule state of wet material
Coating: protection layer, color, controlled release, film, or bowels solved coating of granules and pills.
Industries
Pharmaceutical industry: tablet, capsule, Chinese medicine (low sugar or sugar-free granule);
Foodstuff: cocoa, coffee, milk powder, flavoring and so on;
Other industries: pesticide, feed, chemical fertilizer, pigment, dyestuff and so on;
Specifications
| Item | unit | Type | |||||||||
| 3 | 5 | 15 | 30 | 60 | 120 | 200 | 300 | 500 | |||
| Container | volume | L | 12 | 22 | 45 | 100 | 220 | 420 | 670 | 1000 | 1500 |
| diameter | MM | 300 | 400 | 550 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | |
| Capability | min | KG | 1.5 | 4 | 10 | 15 | 30 | 80 | 100 | 150 | 250 |
| max | KG | 4.5 | 6 | 20 | 45 | 90 | 160 | 300 | 450 | 750 | |
| Fan | capacity | m3/H | 1000 | 1200 | 1400 | 1800 | 3000 | 4500 | 6000 | 7000 | 8000 |
| pressure | MM H2O | 375 | 375 | 480 | 480 | 950 | 950 | 950 | 950 | 950 | |
| power | KW | 3 | 4 | 5.5 | 7.5 | 11 | 18.5 | 22 | 30 | 45 | |
| Steam consumption | KG/H | 15 | 23 | 42 | 70 | 141 | 211 | 282 | 366 | 451 | |
| Compressed air consumption | m3/min | 0.9 | 0.9 | 0.9 | 0.9 | 1 | 1 | 1.1 | 1.5 | 1.5 | |
| Weight of main machine body | KG | 500 | 700 | 900 | 1000 | 1100 | 1500 | 1500 | 1800 | 2000 | |
| Steam pressure | MPA | 0.3-0.6 | |||||||||
| Temperature | ℃ | Adjustable at the range from room temperature to 120℃ | |||||||||
| Working time | MIN | According to the properties of raw materials | |||||||||
| Field | % | ≥99 | |||||||||
| Noise | DB(A) | When installation, main machine is separated from fan | |||||||||
| Size (L*W*H) | M | 1.0*0.6*2.1 | 1.2*0.7*2.3 | 1.25*0.9*2.5 | 1.6*1.1*2.5 | 1.85*1.4*3 | 2.2*1.65*3.3 | 2.34*1.7*3.8 | 2.8*2.0*4.0 | 3*2.25*4.4 | |
