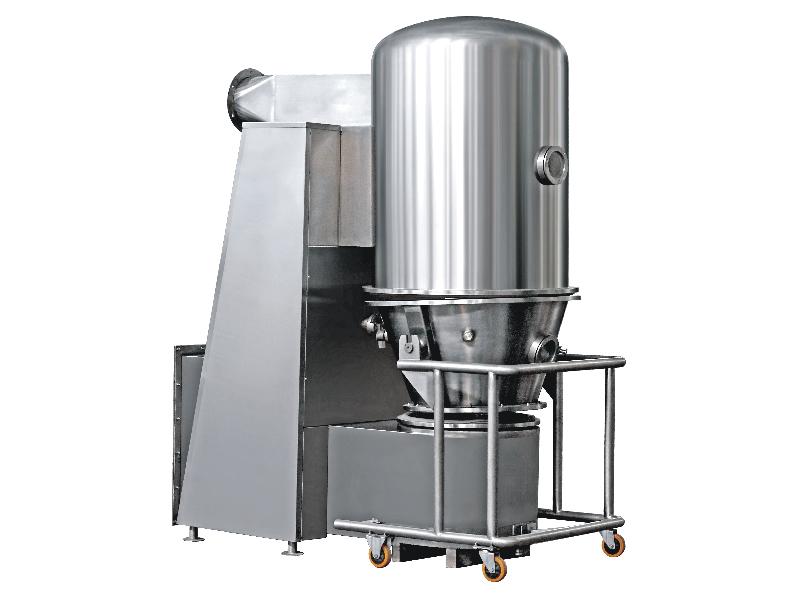

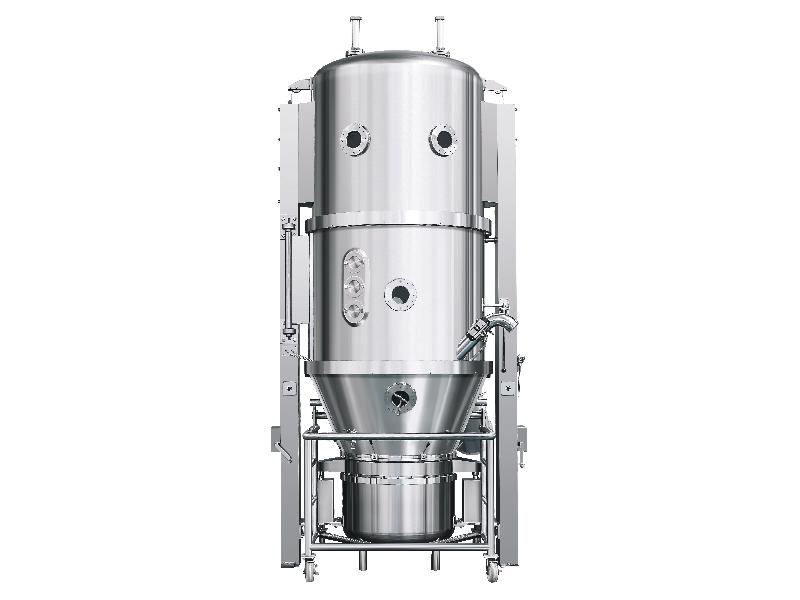

High Efficiency Fluid Bed Dryer GFG

High Efficiency Fluid Bed Dryer GFG
High Efficiency Fluid Bed Dryer GFG High Efficiency Fluid Bed Dryer GFG

The highly efficient GFG fluid bed dryer is widely used to dry powder and particles in pharmaceutical, food, animal feed, and other industries.

Working Principle

After purification and heating, air is introduced from the bottom of the induced draft fan and passes through the raw material screen plate. Inside the working chamber, raw materials are quickly dried when moisture evaporates and is removed.

Specifications
Item Type
Raw material GFG-60 GFG-100 GFG-120 GFG-150 GFG-200 GFG-300 GFG-500
Fan Air volume (m3/h ) 2361 3488 4000 4901 6032 7800 10800
Air pressure (pa ) 594 533 533 679 787 950 950
Power (kw ) 7.5 11 15 18.5 22 30 45
Stirring power(kw ) 0.55 0.55 0.55 0.55 0.55 0.75 0.75
Stirring speed (rpm) 11 11 11 11 11 11 11
Consume of steam (kg/h ) 140 170 210 240 280 360 450
Power of electrical heating (kw ) 54 63 63 72 81 99 117
Time of operation(min) 15-30 15-30 15-30 15-30 15-30 15-30 15-30
Height of main machine (mm) Square 2750 2850 2850 2900 3100 3300 3650
Round 2700 2900 2900 2900 3100 3600 3850
