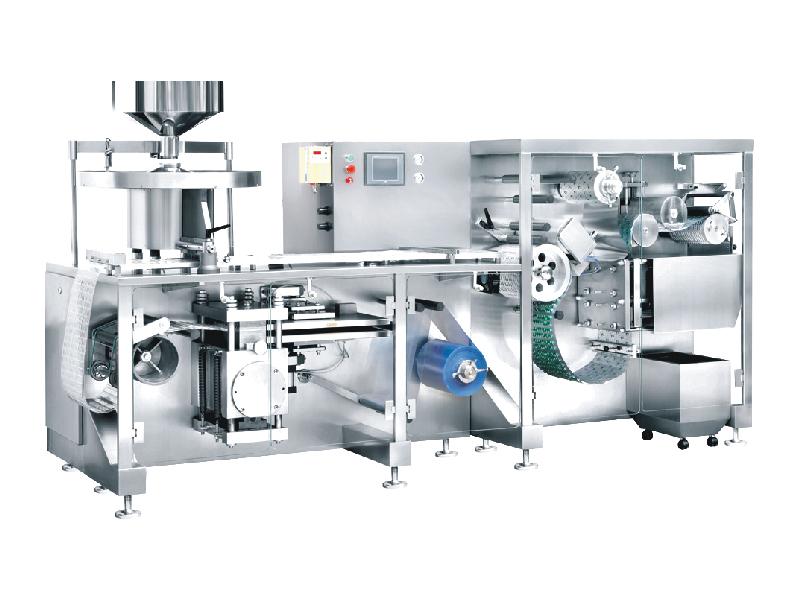

Flat Plate Automatic Blister Packing Machine DPH-220/260

Flat Plate Automatic Blister Packing Machine DPH-220/260

This flat plate automatic blister packing machine is suitable for ALU-PVC packaging for medicines, food, electrical parts and more. With a compact structure, easy operation, adjustable stroke and excellent durability, it is an ideal flat plate automatic blister packing machine for applications in hospital dosage rooms, laboratory institutes, health care product factories, small-sized pharmacy factories, and other customer locations.

Parameters
Model DPH-220 DPH-260
Pharmacy PVC (0.2-0.4)×220mm (0.2-0.4)×260mm
Aluminium Fiol PTP (0.02-0.05)×220mm (0.02-0.05)×260mm
PVC & PTP Diameter of Outer Reel < φ400mm
Diameter of Reel Core: φ70～80（mm）
Production Capacity 40- 120 times/min 40- 120 times/min
Packing Efficiency Capsules: 110,000 - 170,000 pcs/h Capsules: 160,000 - 260,000 pcs/h
Tablets: 150,000 - 300,000 pcs/h Tablets: 220,000 - 450,000 pcs/h
Compressed air(pressure) 0.6-0.8MPa 0.6-0.8MPa
Air consumption(m3/min) ≥0.4 ≥0.4
Overall Dimensions （L*W*H） 3140*940*1600mm 3140*940*1600mm
Weight 2500Kg 2800Kg
Installed Power 12.5Kw 380V 50Hz
