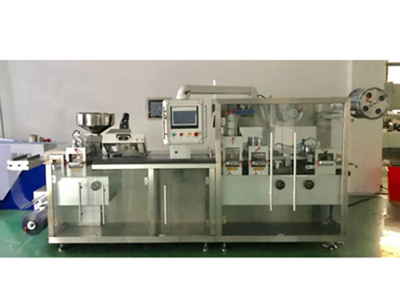

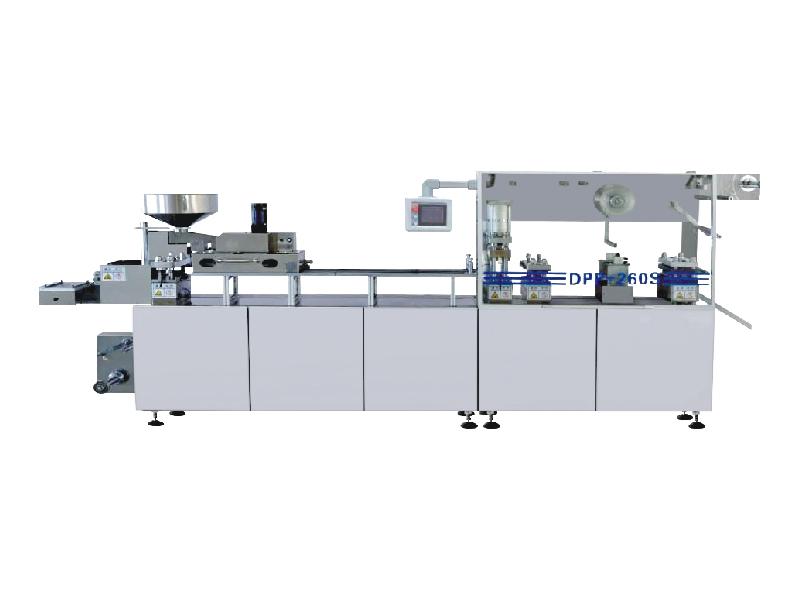

Automatic Blister Packing Machine for Mask DPP-260S

Automatic Blister Packing Machine for Mask DPP-260S
Automatic Blister Packing Machine for Mask DPP-260S Automatic Blister Packing Machine for Mask DPP-260S

The DPP-260S automatic blister packing machine for masks features a worm wheel reducer, adjustable stroke, double orientation shaft, and touch screen control. It is an aluminum-plastic automatic blister packing machine for automatic and high-speed mask packing.

Parameters
Model DPP-260S
Packing Material Cold form alu (mm) (0.09-0.15)×260
PTP alu foil (mm) (0.02-0.05)×260
Pharmacy PVC (mm) (0.2-0.4)×260
Capacity:Standard Card (80mm×57mm)×4Row ((Cycle/min)) ALU/ALU:40 ALU/PVC:60
Range of stroke(mm) 40-120
Max.forming area(mm) 250*120
Max.forming depth(mm) ALU/ALU:13 ALU/PVC:18
Power Supply AC380v 50Hz 6.5kw
Clean compressed air(pressure)(Mpa) 06-0.8
Air consumption(stere/ min) ≥0.3
Water chiller consumption for moulds(tap water or recycle water)(L/h) 60
Overall dimension(L×W×H)(mm) 4200*750*1700
Net weight (kg) 2000
