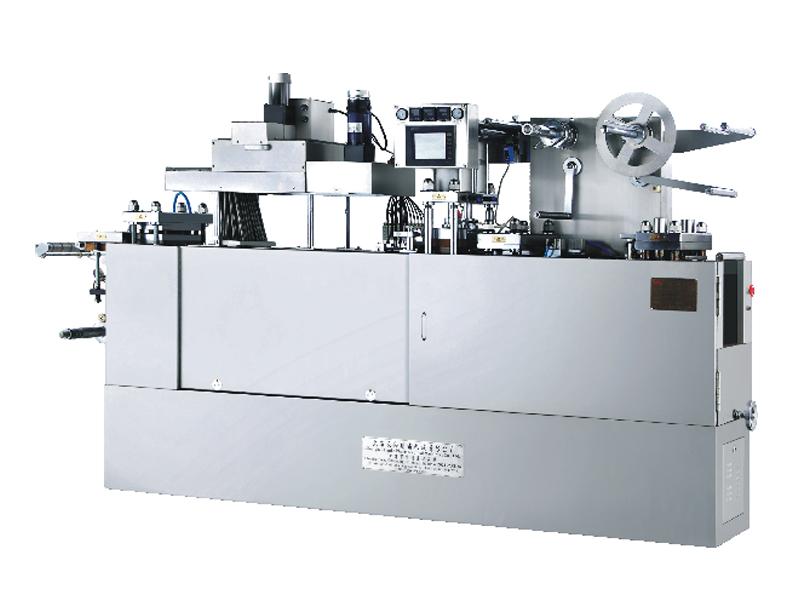

Automatic Blister Packing Machine DPP Series

Automatic Blister Packing Machine DPP Series

The DPP automatic blister packing machine is an ideal blister packing machine for small sized pharmaceutical factories, health care product factories and food industry factories. With an imported frequency transformer, adjustable stroke, manual wheel and stainless steel structure, this automatic blister packing machine features a simply operation and a high output.

Specifications
Model DPP-88
Production Capacity(Cycle/min) 20-40
Range of stroke(mm) 20-100
Packing material Pharmacy PVC (mm) (0.2-0.4)×88
PTP alu foil (mm) (0.02-0.05)×88
Compressed air(pressure) 0.6-0.8MPa
Air consumption(m3/min) ≥0.2
Power Supply AC220V/380V 50HZ 1.8KW
Overall dimension(L×W×H) 900*460*890
Net weight (kg) 350
Model DPP-140 DPP-250 DPP-350
Production Capacity(Cycle/min) 20-40 20-45 20-40
Range of stroke(mm) 40-120 40-120 40-120
Packing material Pharmacy PVC (mm) (0.2-0.4)×140 (0.2-0.4)×250 (0.2-0.4)×350
PTP alu foil (mm) (0.02-0.05)×140 (0.02-0.05)×250 (0.02-0.05)×350
Compressed air(pressure) 0.6-0.8MPa 0.6-0.8MPa 0.6-0.8MPa
Air consumption(m3/min) ≥0.2 ≥0.3 ≥0.4
Power Supply AC220V/380V 50HZ AC380V 50HZ 6.5KW AC380V 50HZ 10KW
5KW
Water chiller for moulds Tap water or recycle water with 60L/h consumption
Overall dimension(L×W×H) 3200×650×1700 3200×750×1700 3700×750×1700
Net weight (kg) 1200 1700 2300
