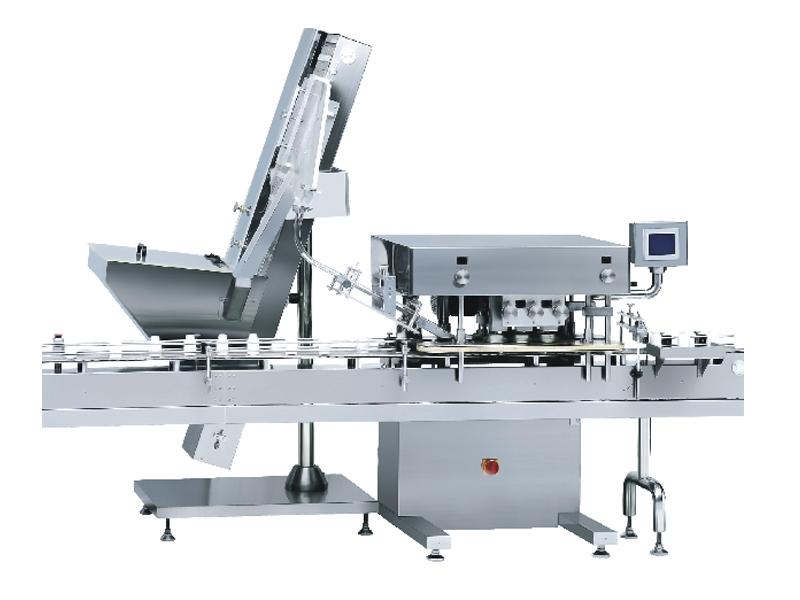

Automatic Screw Capping Machine XGJ-120

Automatic Screw Capping Machine XGJ-120

The XGJ-120 automatic screw capping machine is made for capping and screwing processes in pharmaceutical, food, and light industries. It is used to rearrange, cap and screw caps with a diameter between 35 to 100mm.

With this automatic screw capping machine, bottles are one hundred percent screw capped through the use of 2 sets of reverse rubber wheels and 2 sets of direct synchronous belts. The screwing speed and tightness are adjustable upon request. The automatic screw capping machine works individually, or can also be connected to automatic counting machines, paper filling machines, foil sealing machines and labeling machines. It is in full compliance with GMP standards.

Specifications of Automatic Screw Capping Machine XGJ-120
Capacity 60-100 bottles/minute
Cap Diameter Φ 25-Φ 70mm
Vessel Diameter Φ 35-Φ 140mm
Vessel Height 38-250 mm
Power Supply 3P AC 380V 50-60 Hz
Power Consumpion 1.2 KW
Main Machine Dimensions (L × W × H) 1300 × 850 × 1400mm
Main Machine Weight 600Kg
Cap Dropper Dimensions (L × W × H) 1100 × 1200 × 2150 mm
Cap Dropper Weight 190kg
