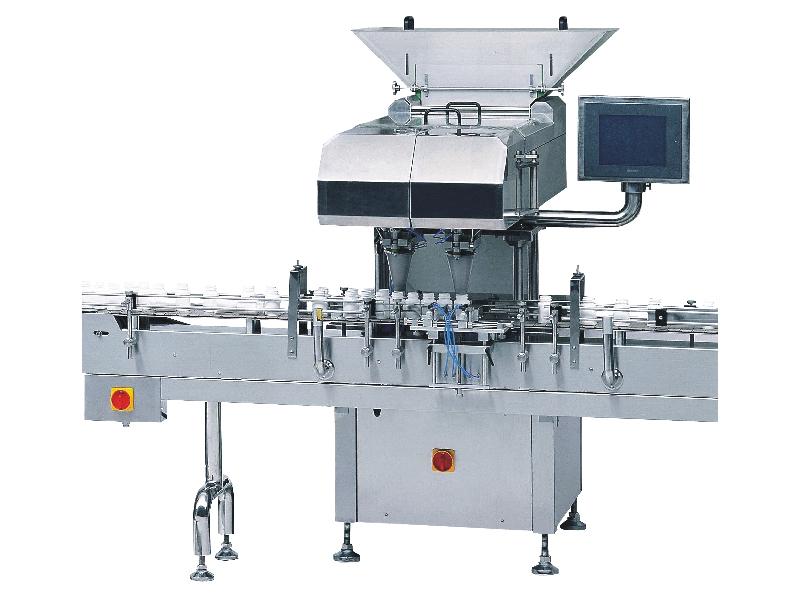

Electronic Automatic Counting Filling Machine PP

Electronic Automatic Counting Filling Machine PP
Introduction

The PP electronic automatic counting filling machine specializes in counting and filling of tablets, coated tablets, soft and hard capsules and more products in medical, food, agricultural, chemical, and other industries. It can work alone or be attached to other pharmaceutical machines for a complete automatic bottle packaging line.

This electronic automatic counting filling machine is comprised of a machine box, double-layer vibrating mechanism, material containers, material delivery pad, photoelectric counting channels, cylinders, photoelectric counting system, cylinder and electromagnetic valve system, a control box, a conveyor, sensors, and other auxiliary components. With PLC, operations such as counting, filing and monitoring are quickly carried out on both common and transparent capsules in a variety of shapes.

How It Works

The material container, material delivery pad, photoelectric counting channels and cylinders on this electronic automatic counting filling machine are easy to remove with no need for tools. Solenoid valves are used to control the cylinders for loosening or tightening of the material delivery pad.

Sensors on the electronic automatic counting filling machine monitor the material funnel. When a bottle arrives below the funnel, the funnel covers it and drops the specified number of pills into the bottle. If the bottle height has been changed, all users need to do is adjust the working platform height.

Specifications
Number of slots PP-12 PP-16 PP-24
Nmber of Slots 12 16 24
Capacity (Per Hour) 48,000-240,000 60,000-320,000 80,000-500,000
Counting Range 15-9999
Tablet/Capsule Size Tablet/pill: δmin: 3mm Φ max: 22mm capsule: 00#-5#
Vessel Diameter Φ 25-Φ 75 mm
Vessel Height ≤240 mm
Feeding Hopper 40L 40L X 2
Compress Air Pressure 0.4-0.6 Mpa
Air Consumption 150L/min 200L/min 250L/min
Power Supply AC 380V 3P 50-60 Hz
Power Consumption 3.8 KW 4.0KW 7.2 KW
Dimension (L×W×H) 1200×1950×1800mm 1300×1950×1800mm 1650×1950×1800mm
