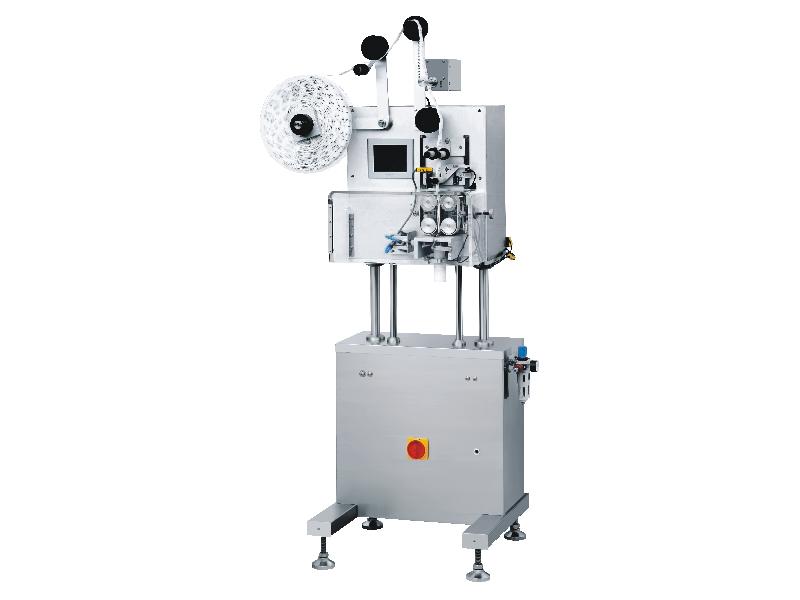

Desiccant Dispenser GF-60

The GF-60 desiccant dispenser dispenses desiccant pouches into bottles and utilizes a numerical control technology for the control system, a high precision linear guide way, and a BANNER R55E color sensor.

Specifications of Desiccant Dispenser GF-60

Production Capacity		40-60 bottle/min
Desiccant Size	Length	10-40 mm
	Width	5-30 mm
Vessel Diameter		Φ30-Φ110 mm
Vessel Height		50-200 mm
Compressed Air		0.4-0.6Mpa
Air Consumption		50L/min
Power		1.2kw
Power Supply		1P AC220V 50-60HZ
Overall Size (LWH)		8006001900 (MM)
Weight		100kg
