Unscrambler SP

Unscrambler SP

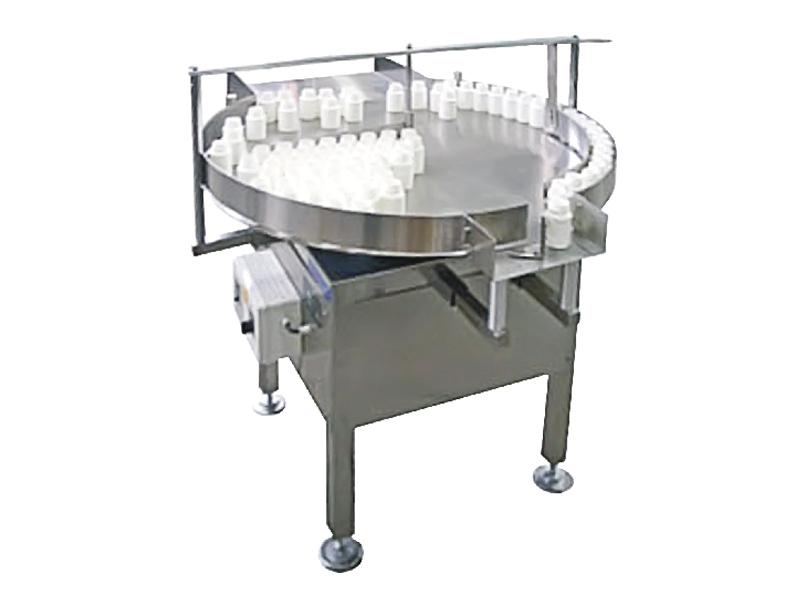

This automatic bottle unscrambler replaces manual sorting of disorderly plastic bottles and sends the bottles onto the next working station. This unscrambler is equipped with an electronic timing device, protecting the bottles from falling. In addition, the photoelectric control device ensures a reliable performance and easy machine adjustment. The large sorting plate is made of a food grade food plastic, ensuring the unscrambler is in full compliance with GMP requirements.

Specifications
Capacity 20-100 bottles/minute
Turn Table Diameter Φ700-Φ1200 mm
Turn Table Speed Stepless speed regulating
Vessel Diameter Φ 25-Φ 150
Vessel Height 30-250 mm
Power Supply AC 220V single phase 50-60 Hz
Power Consumption 100W
Dimension (L×W×H) 800×800×1000~1300×1300×1100mm
