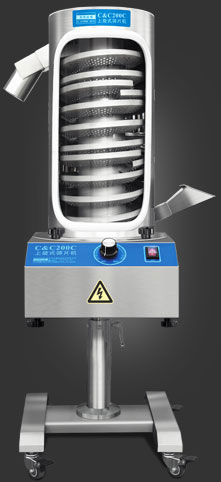

Uphill Tablet Deduster, SZS-200

Uphill Tablet Deduster, SZS-200

The uphill tablet deduster is pharmaceutical processing equipment that removes the burrs and dust from tablet surface while tablets are being conveyed upwards through continuous spiral path. This tablet deduster is attachable to various types of tablet presses and metal detectors. All parts in contact with materials are made entirely of 316L stainless steel. This tablet dedusting machine is designed and built in conformance to GMP standard

Specifications
Model SZS200
Max. output(tablets/h) 1000000( Ø8-3mm)
Rated power (W) 150
Dedusting path (M) 6.2
Max. tablet diameter (mm) Ø25
Power supply 110V /220V 50Hz/60 Hz 1P
Compressed air 0.1m³/min 0.1MPa
Vacuum 2.5 m³/min -0.1MPa
Max. Noise (dB(A)) »75
Overall dimension (L*W*H) (mm) 500X550X1350-1500
Weight(kg) 70
