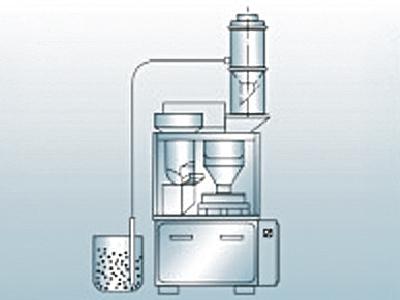

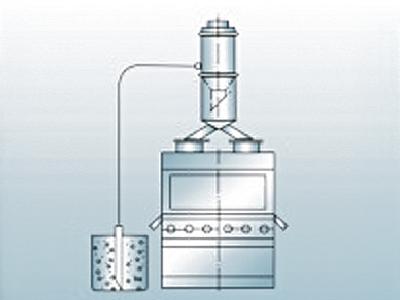

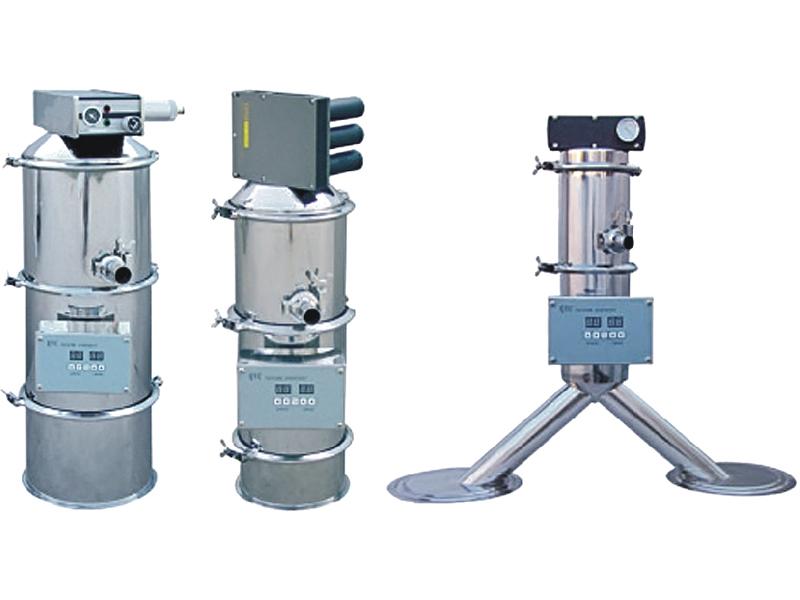

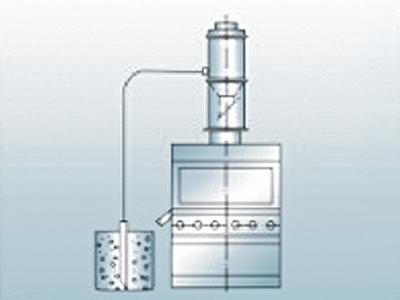

This pneumatic vacuum conveyer is used for automatic material feeding for tablet press machines, capsule filling machines, packing machines, pulverizing machines, screen machines and mixing machines. Unlike a mechanical vacuum pump, it is noiseless, maintenance-free, and features a simple structure, small volume, and easy to operate performance. Designed according to international standards, this pneumatic vacuum conveyer complies with GMP requirements.
Model | Transportation Capacity (kg/h) | Air Pressure | Air Consume | Overall Size |
(Mpa) | (L/min) | (mm) | ||
QVC-1 | 350 | 0.4-0.6 | 180 | Φ140×560 |
QVC-2 | 700 | 0.4-0.6 | 360 | Φ213×720 |
QVC-3 | 1500 | 0.4-0.6 | 720 | Φ290×850 |
QVC-4 | 3000 | 0.4-0.6 | 1440 | Φ420×1150 |
QVC-5 | 6000 | 0.4-0.6 | 2880 | Φ420×1150 |
QVC-6 | 9000 | 0.4-0.6 | 4320 | Φ420×1350 |
